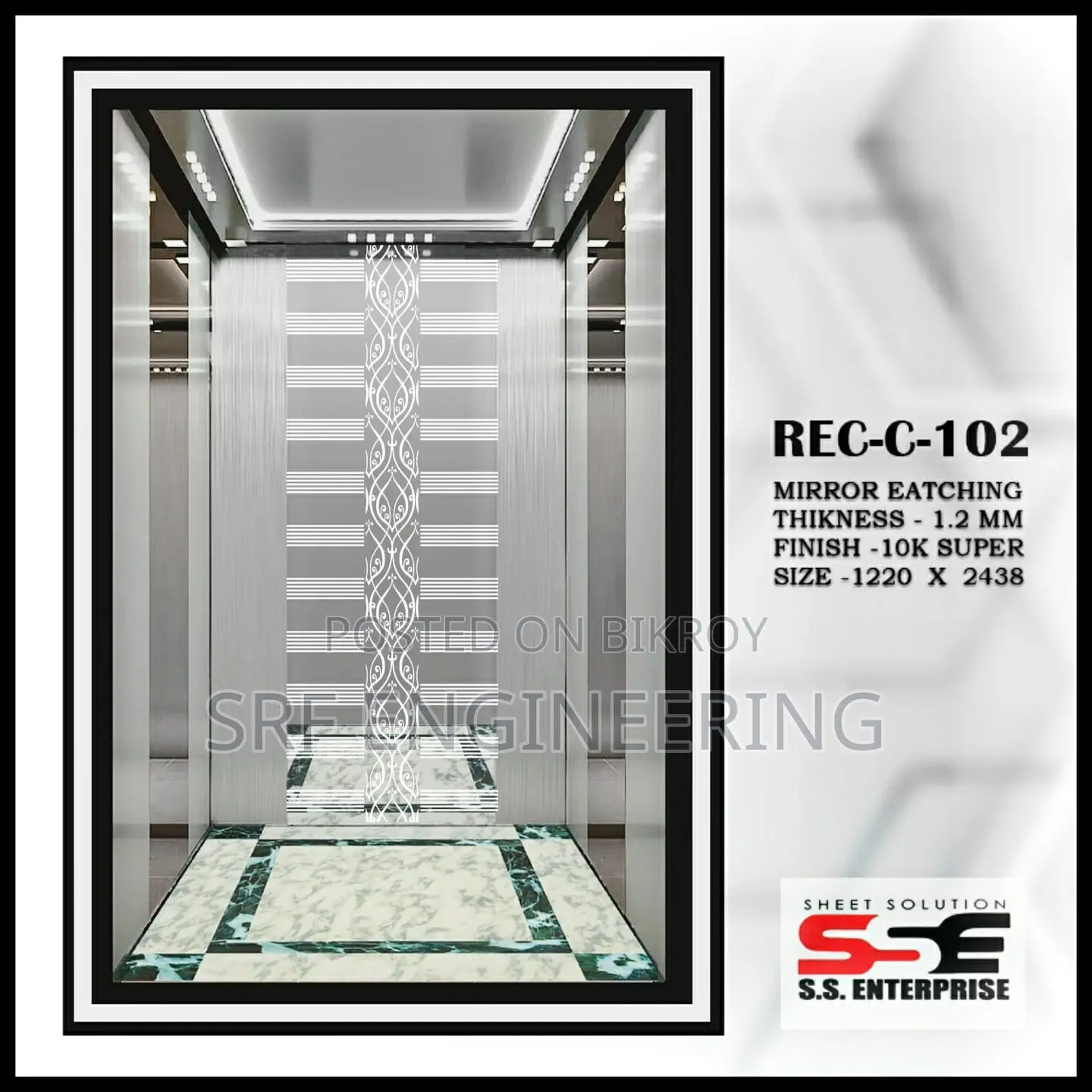

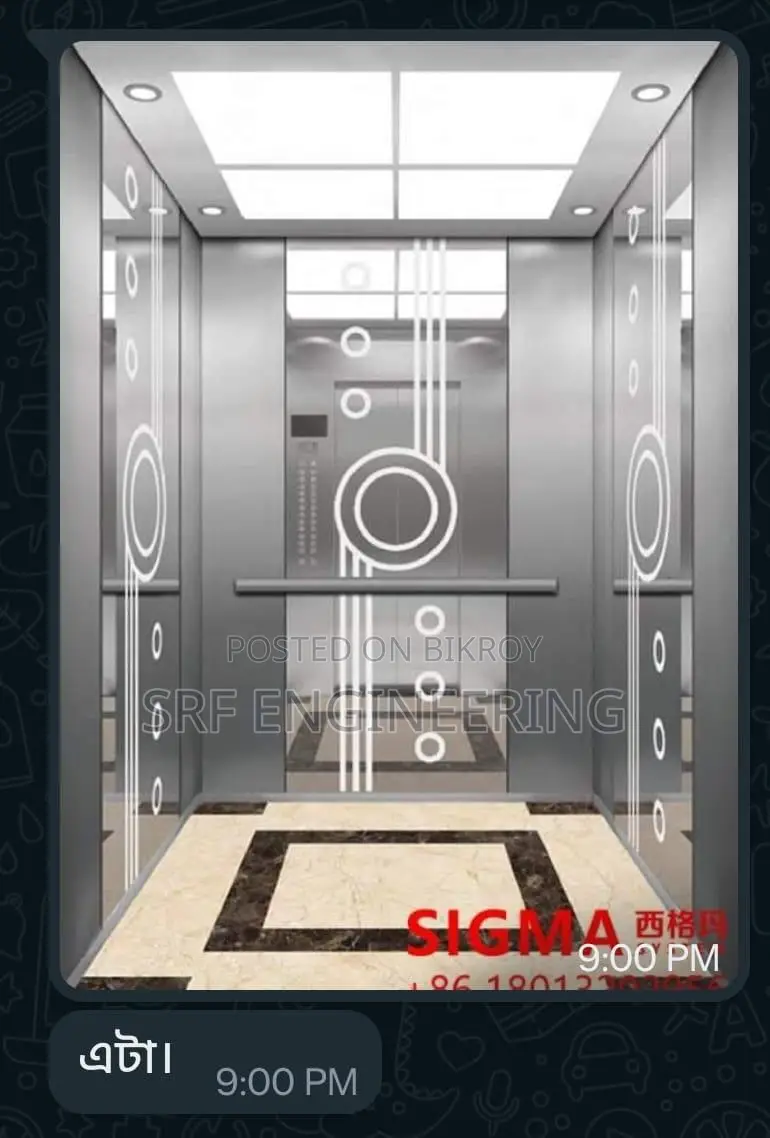

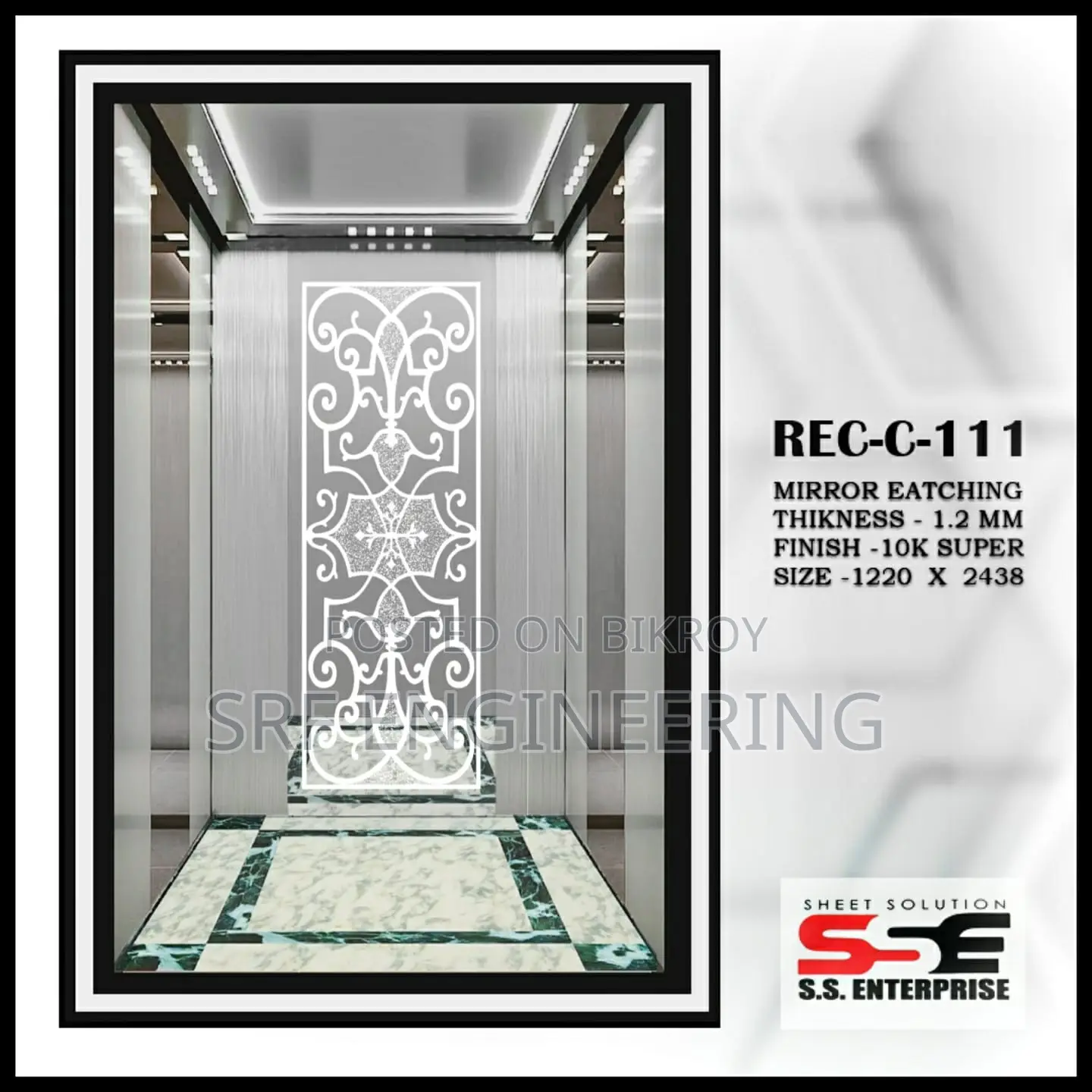

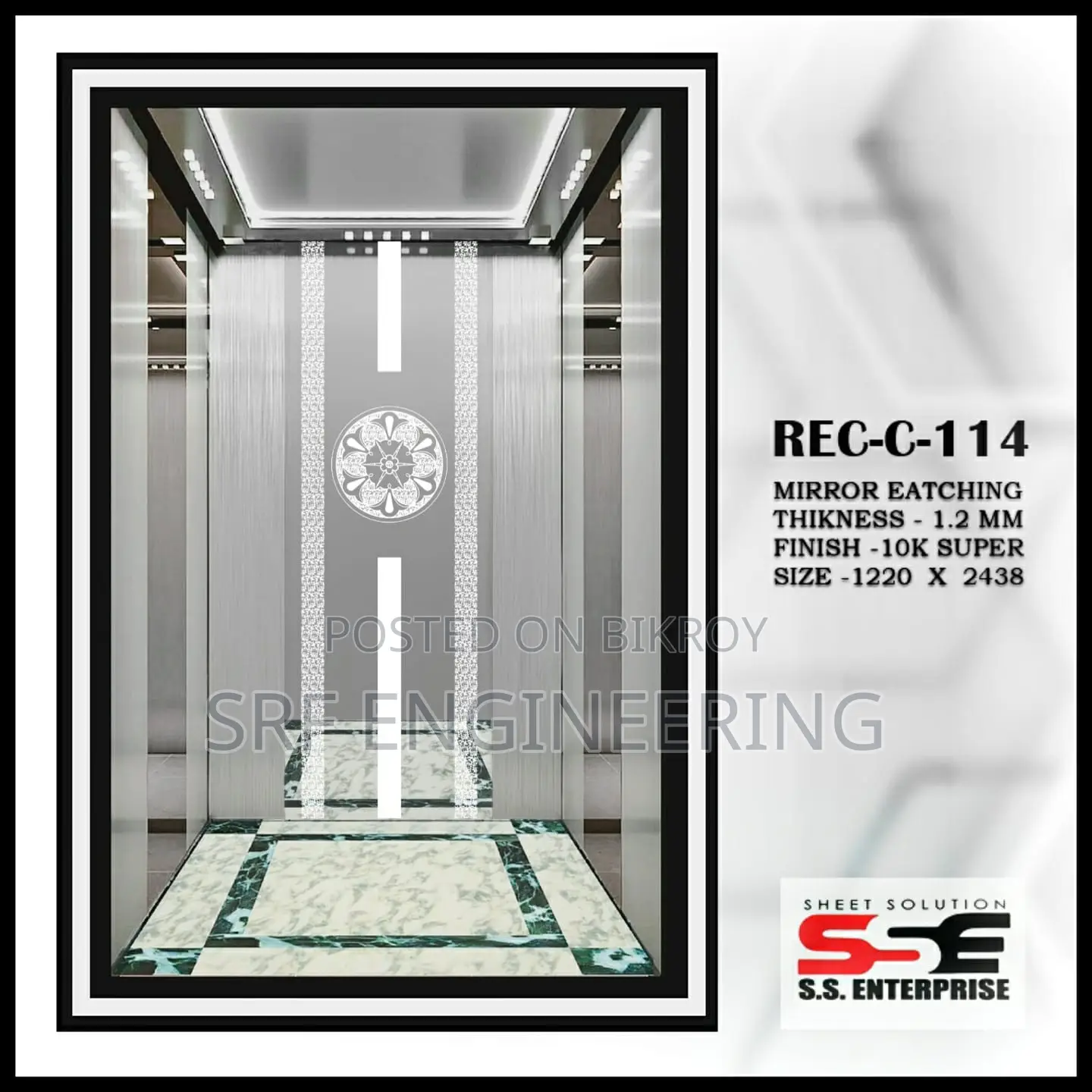

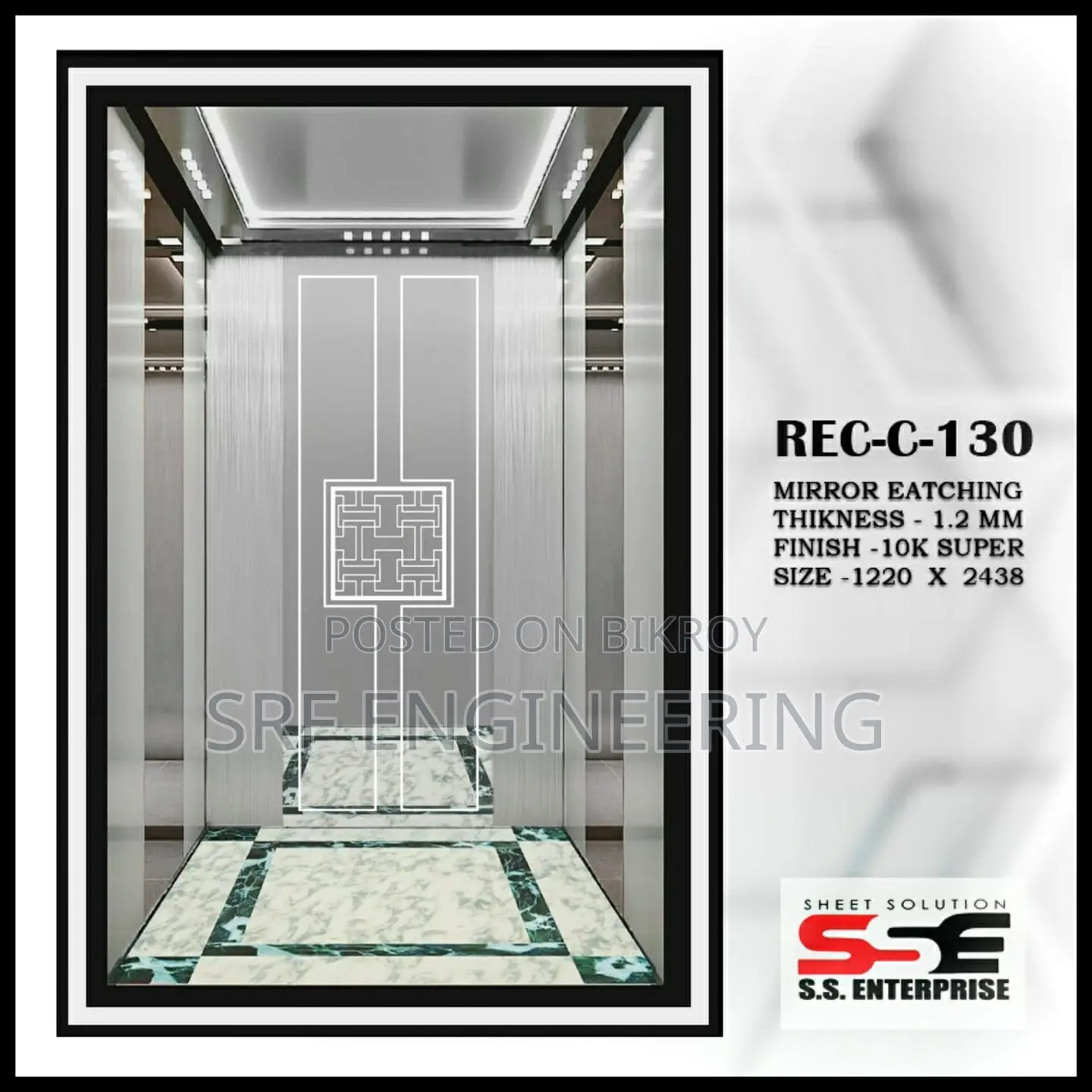

Elevator lift

Type: Complete MR (Machine Room) Gearless Passenger Lift. Standard: EU Standard EN81.10.1, (BMA- Bangladesh Machineries Association), KTL ISO9001, EN115, Member of Bangladesh China Chamber of Commerce. Brand: SIGMA Capacity: 630 Kg/08 passenger Roping: 2:1 Traveling Height: 24 Meter (Approx.) Speed: 1.5 meter/sec Driving System: AC-VVVF (Variable Voltage Variable Frequency) ensures smooth starting, precise leveling, and smooth stopping, with up to 50% power savings, longer lifespan, and 32-bit processing. Power Requirement: Motor and others-AC 380V ± 7%, 3 phase, 50Hz. Lighting & Fan-AC 220V, Single phase 50Hz. Floors: 09 Floor Displaying: G,1,2,3,4,5,6,7,8.... (G is the main floor). Traction Motor with Encoder: Permanent magnet synchronous gearless traction machine, Brand- Torin Drive, Model: GTW-17A, Capacity- 630 kg, Power- 8 KW & Speed- 1.5 m/s, Country of origin & manufacturer- Sino-Germany joint venture. Machine room: Above the shaft Control System: Full integrated collective control, Brand- Monarch, Model- Nice 3000+ New, Power- 11 KW. Pit Depth: 1500 mm Headroom (Free last stop): 4500mm Door Operator & Inverter: NBSL brand VVVF Electronic car door operator, Brand- Panasonic. Opening: Center opening Door Hanger: NBSL brand electric door hanger Door Size: Width as per shaft and Height- 2100 mm Door Sill: Aluminum Alloy Door Material: Landing Door- Etching Mirror finished Stainless Steel (SS). Other Doors- Mirror finished Stainless Steel (SS). Door Frame/Jamb: Ground Floor- Wide jamb Stainless Steel (SS) mirror finished. Other Floors- Narrow jamb Stainless Steel (SS) hairline finished. Cabin Sills: Stainless Steel (SS) Etching mirror finished (design-client may choose from the catalogue), Grade of sheet- 304, Thickness- 1.2mm. Handrail: Stainless Steel (SS) mirror finished, flat/round type (design/shape-client may choose from the catalogue), Ceiling: Stainless Steel (SS) frame with white acrylic lighting panel. Fan: Blower Fan on side wall Cabin size: W- 1200 mm X D- 1200 mm X H- 2400 (approx.) Cabin door: Stainless Steel (SS) Etching mirror finished. Cabin Photocell: Full height photocell, Brand- WECO. Car floor: PVC (design-client may choose from the catalogue). Car Operating Panel (COP): Display TFT (7 inch)/ LCD Button: Shape- Round/Square (client may choose from the catalogue). Light- Red/White/Blue (client may choose from the catalogue). Landing Operating Panel (LOP): Display LCD red color Button: Shape- Round/Square (client may choose from the catalogue). Light- Red/White/Blue (client may choose from the catalogue). Main Guide Rail: Thickness- 10 mm, Special T series. Counter weight Guide Rail: Thickness- 16 mm, Special T hollow. Wall Bracket Counter Weight Nut, Bolt, Anchor Steel Rope Flat Cable Suspension Rod Safety devices- Automatic Rescue Device (ARD). Speed Governor: Included, Two ways. Magnetic Contractor: Included. Buffer: Included. Final Limit Switch: Included. Additional Safety Features: 1) Emergency light 2) 3 way Intercom system 3) Full Height Photo Sensor 4) Stop the lift by Overload Device 5) Pre Limit Switch 6) Final Limit Switch 7) Emergency Unlocking 8) Fireman Switch 9) Emergency power off Standard Functions- Overload voice-light alarm and protection functions Over speed protection Auto-running of Full load Car ventilation, light shut off automatically Self-diagnosis and error displaying of malfunctions Return to the base floor automatically Floor and direction indicator in the cabin Floor and direction indicator in landing halls Automatic Operation Inspection Operation Car stops and Doors open automatically Repeated door closing Automatic terminal position revision Cabin Arrival Gong Automatic stop when not in operation Automatic lock/unlock the door Call Cancelling Cabin top maintenance Car Lights & Fans Compulsory slowdown at terminal station Delivery Time: 80±10 days after signing the contract, receiving the first payment, and opening the LC. Documents with machine: The following documents will be handed over with the Lift: - Packing List - Qualified Documents (certificates) - Lift shaft and Machine Room Plan - Lift Maintenance Documents - Electrical Principle Layout and Wiring Layout - Lift Parts Installation Layout 01 year Free Servicing, 02 years replacement WARRANTY of lift from the date of commissioning. Motor Guarantee 5 Year. “Customer’s satisfaction is our first priority”
