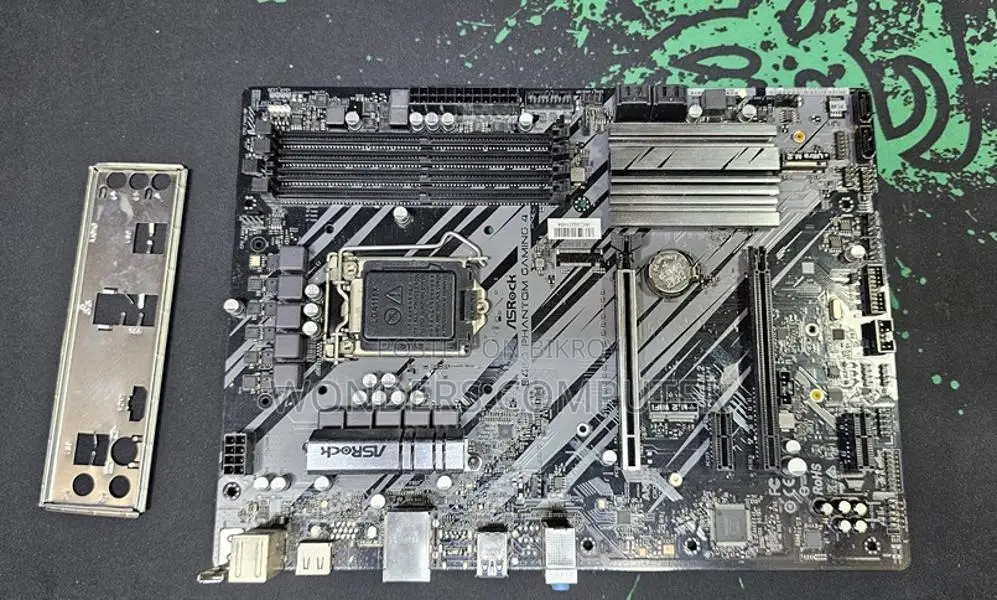

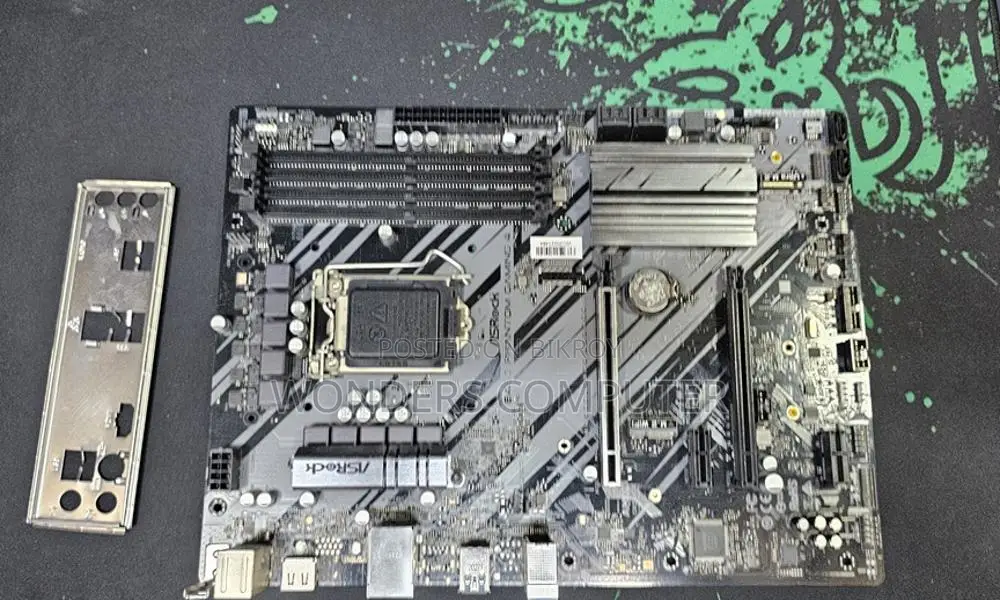

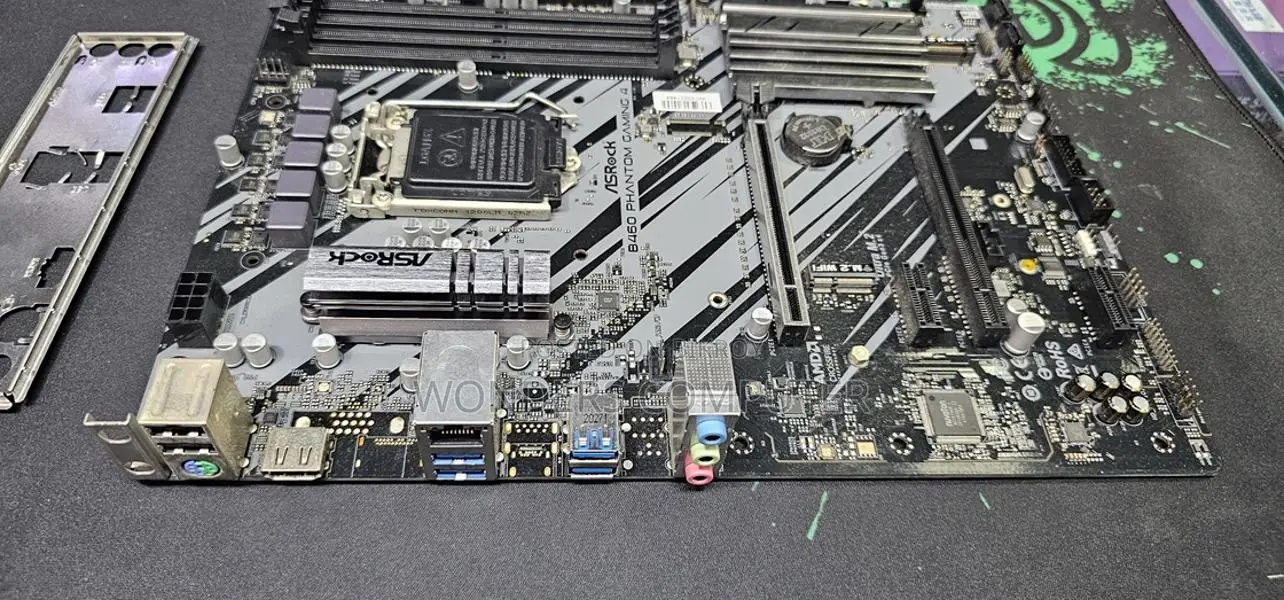

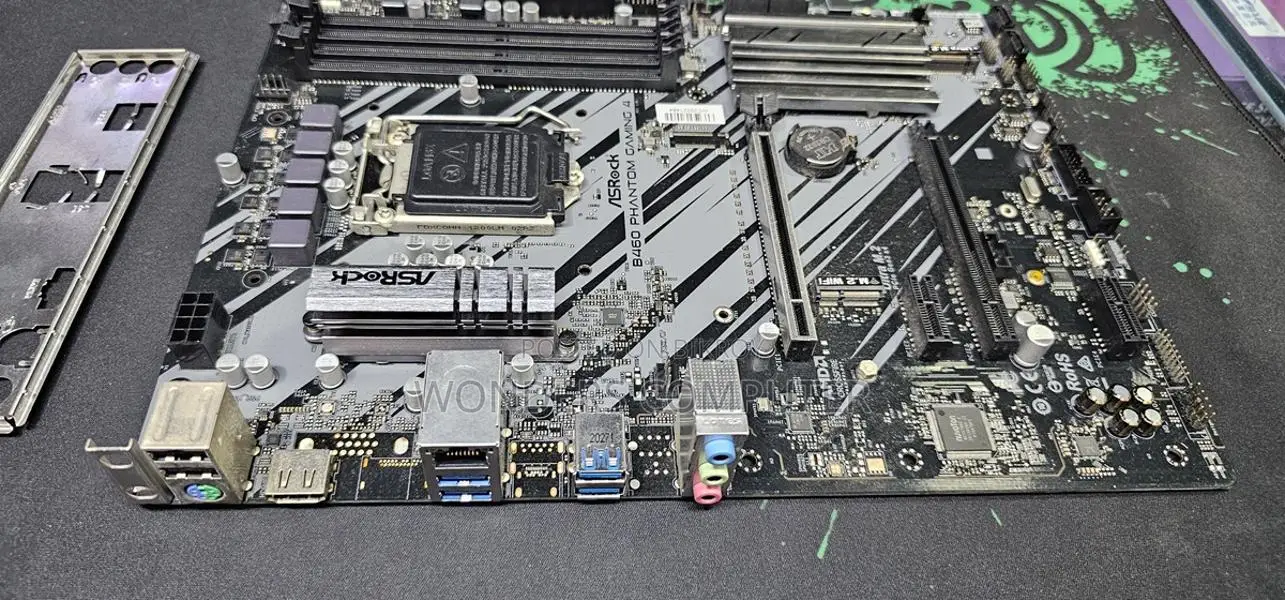

ASRock B460 Phantom Gaming 4 LGA 1200 Intel ATX Motherboard

ASRock B460 Phantom Gaming 4 LGA 1200 Intel B460 ATX Intel Motherboard Learn more about the ASRock B460 Phantom Gaming 4 Inaccurate specs? Let us know Feedback Model Brand ASRock Model B460 Phantom Gaming 4 Supported CPU CPU Socket Type LGA 1200 CPU Type Supports 10th Gen Intel Core Processors (Socket 1200) Supported CPU Technologies Turbo Boost Technology 3.0 Chipsets Chipset Intel B460 Onboard Video Onboard Video Chipset Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1* Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel Built In Visuals, Intel Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1 Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, Intel SGX Content Protection, UHD/HDR Blu-ray Disc Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required) Supports HDCP 2.3 with HDMI 1.4 Port Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port * Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. ** VP9 10bit and VC-1 are for decode only.* VP8 and VP9 encode are not supported by Windows OS. Memory Number of Memory Slots 4x288pin (DDR4) Memory Standard Supports DDR4 2933/ 2800/ 2666/ 2400/ 2133 non-ECC, un-buffered memory* * Please refer to Memory Support List on ASRock's website for more information. * Core (i9/i7) support DDR4 up to 2933; Core (i5/i3), Pentium and Celeron support DDR4 up to 2666. Maximum Memory Supported 128GB ** Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. Channel Supported Dual Channel Expansion Slots PCI Express 3.0 x16 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3)* * Supports NVMe SSD as boot disks PCI Express x1 2 x PCI Express 3.0 x1 Slots Other Slots 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module Storage Devices Serial ATA (SATA) 6 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug* * If M2_2 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled. M.2 1 x Ultra M.2 Socket (M2_2), supports M Key type 2280/22110 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)** ** Supports NVMe SSD as boot disks ** Supports ASRock U.2 Kit SATA RAID RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 17 Onboard Audio Audio Chipset Realtek ALC1200 Audio Channels 7.1 Channels Onboard LAN LAN Chipset Intel I219-V Max LAN Speed 1Gbps Rear Panel Ports Back I/O Ports 1 x Antenna Bracket 1 x PS/2 Mouse/Keyboard Port 1 x HDMI Port 4 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection) 2 x USB 2.0 Ports (Supports ESD Protection) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Line in / Front Speaker / Microphone
