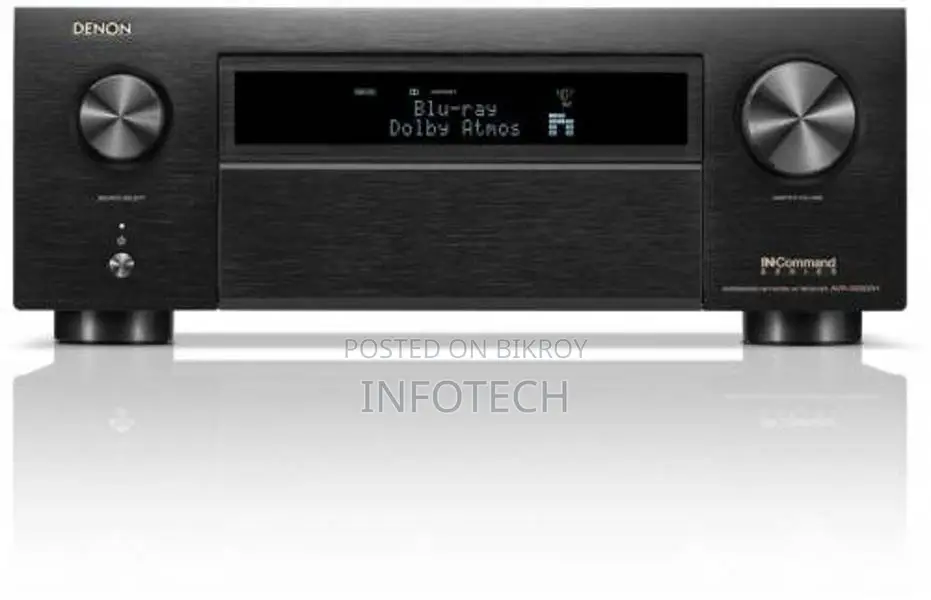

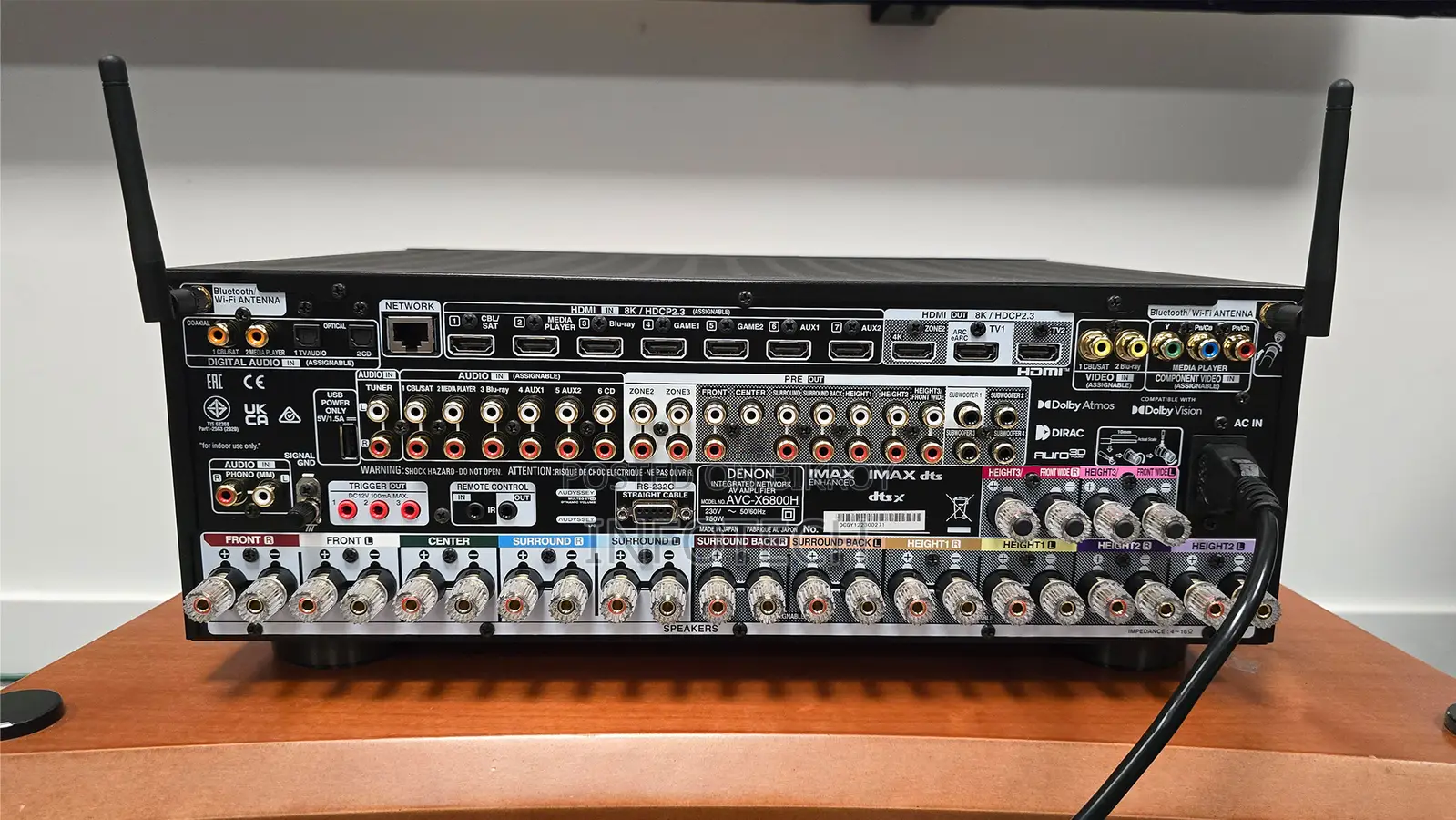

Denon AVR-X6800H 11.4 Channel Network AV Receiver

Denon AVR-X6800H 11.4 Channel Network AV Receiver in Bangladesh is a flagship home theatre receiver engineered for uncompromising audio and video performance. With 11.4 channels and a Class-AB amplifier design, it delivers cinematic surround sound with precision and power. Each channel delivers 140W at 8 ohms (20Hz–20kHz, 0.05% THD), 175W at 6 ohms (1kHz, 0.7% THD), and up to 250W at 6 ohms (1kHz, 10% THD), ensuring dynamic, distortion-free audio. Supporting speaker impedance from 4 to 16 ohms, it adapts to a wide range of setups. The AVR-X6800H is equipped with advanced audio processing technologies, including Dolby Atmos, Dolby TrueHD, Dolby Surround, DTS:X, DTS:X Pro, DTS-HD Master Audio, DTS Neural:X, DTS Virtual:X, IMAX Enhanced, and Auro 3D, offering immersive soundscapes for movies, music, and gaming. It also supports Dolby Atmos Height Virtualisation and upmixing technologies for flexible speaker configurations. High-resolution audio playback is supported via USB, including DSD (2.8/5.6 MHz), FLAC, ALAC, AAC, MP3, WAV, and WMA. On the video side, the AVR-X6800H offers 8K UHD pass-through and upscaling, with full support for HDR10, HDR10+, Dolby Vision, and Hybrid Log Gamma (HLG). With 7 HDMI 2.0 inputs, 2 HDMI outputs, and Zone 2 HDMI, it ensures seamless connectivity for multiple devices. It also supports ARC/eARC, HDCP 2.3, HDMI CEC, and compression modes (4K120AB / 8K60AB), making it future-ready for next-generation displays and gaming consoles. Connectivity options include Wi-Fi, Bluetooth, Ethernet, AirPlay 2, HEOS multi-room streaming, and Roon Ready, giving users access to endless music sources. Control is simple with the Denon AVR Remote App (Android/iOS), and it's compatible with Alexa, Google Assistant, and Josh.ai. The AVR-X6800H also includes AM/FM tuners, multiple digital and analogue inputs, and 13 binding post pairs for flexible speaker configurations. With a sleek design measuring 43.4 × 16.8 × 38.9 cm (antenna down) and weighing 15.6 kg, the Denon AVR-X6800H combines style and power. Networking & Connectivity Connection Type Wi-FI & Bluetooth AirPlay 2, HEOS, Roon Ready Frequency 10 Hz to 100 kHz +1/-3 dB (Direct Mode) Audio & Microphone Sensitivity 200 mV Impedance 4 to 16 Ohms Channel 11.4 Audio Amplifier Class: Class-AB DTS Compatibility: DTS Neo:6, DTS Neural:X, DTS Virtual:X, DTS-HD Master Audio, DTS:X, DTS:X Pro, IMAX Enhanced Dolby Compatibility: Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Pro Logic II, Dolby Surround, Dolby TrueHD Auro 3D Support: Yes Upmixing Technology: Dolby Surround, DTS Neural:X, DTS Virtual:X, Dolby Atmos Height Virtualization Technology Supported File Formats: 2.8 MHz DSD, 5.6 MHz DSD, AAC, ALAC, FLAC, MP3, WAV, WMA Signal / noise ratio 102 dB (Direct Mode / IHF-A) Battery And Power Power capacity Input Power: 120 VAC, 60 Hz Power Consumption Active: 750 W No Sound (ECO On): 65 W No Sound (ECO Off): 110 W Standby: 0.1 W CEC Standby: 0.5 W Network Standby: 2 W Battery capacity 2-Channel Driven: 140 W at 8 Ohms / 20 Hz to 20 kHz / 0.05% THD 175 W at 6 Ohms / 1 kHz / 0.7% THD 1-Channel Driven: 250 W at 6 Ohms / 1 kHz / 10% THD Ports Interface Rear A/V Inputs 7x HDMI 2.0 2x Digital Coaxial 2x Optical TOSLINK 2x RCA Composite 1x RCA Component 6x Stereo RCA Composite 1x Stereo RCA (Phono MM) with Ground Screw Composite Rear A/V Outputs: 2x HDMI 2.0 1x HDMI 2.0 Zone 2 2x Stereo RCA Composite Zone 2 / Zone 3 Pre-Out 4x Stereo RCA Composite Pre-Out 2x Stereo RCA Composite Height / Height 2 Pre-Out 1x RCA Composite Pre-Out 4x RCA Composite Subwoofer Pre-Out Front I/O: 1x USB-A Power Input/Output 1x 1/8" / 3.5 mm Setup Mic Input 1x 1/4" / 6.35 mm Headphone Output Other Rear I/O: 1x RJ45 (Ethernet) Input/Output 1x DE-9 (RS-232C) Input 1x 1/8" / 3.5 mm (Remote) Input 1x 1/8" / 3.5 mm (Remote) Output 3x 1/8" / 3.5 mm (12 V Trigger) Output 2x Wi-Fi Coaxial F-Type Input 1x AM Block Input 1x FM Coaxial F-Type Input 1x USB-A (Power) Output Speaker I/O: 13x Binding Post Pairs (Front, Center, Height, Height 2, Rear Surround) HDCP Support: Yes: Version 2.3 HDMI Compression Modes: 4K120AB / 8K60AB Audio Return Channel (ARC): ARC, eARC HDMI CEC: Yes A/B Speaker Selection: Yes Bi-Amp Capability: Yes Special Features Key Features Tuner Type: AM, FM Radio Frequencies AM: 520 to 1710 kHz FM: 87.5 to 107.9 MHz Others Other Features HDR Support: Yes: HDR10/HDR10+/Dolby Vision/Hybrid Log Gamma Pass-Through Support: 8K Upscaling: 8K UHD GUI: Yes Virtual Assistant: Works with Alexa, Works with Google Assistant, Josh.ai Mobile App Compatible: Yes: Android & iOS App Name: Denon AVR Remote Physical Specification Color Black Weight 15.6 kg Dimension 43.4 x 16.8 x 38.9 cm (Antenna Down, Antenna Removed) 43.4 x 23.6 x 38.9 cm (Antenna Up)
