ASUS H170 PRO GAMING HDMI SATA 6Gb/s USB 3.1 ATX Intel Motherboard

+1

ASUS

Brand

Used

Condition

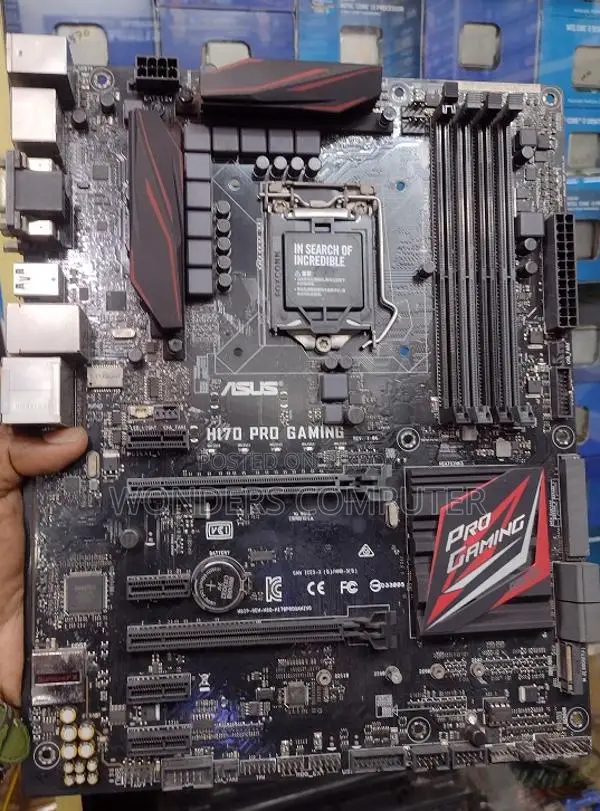

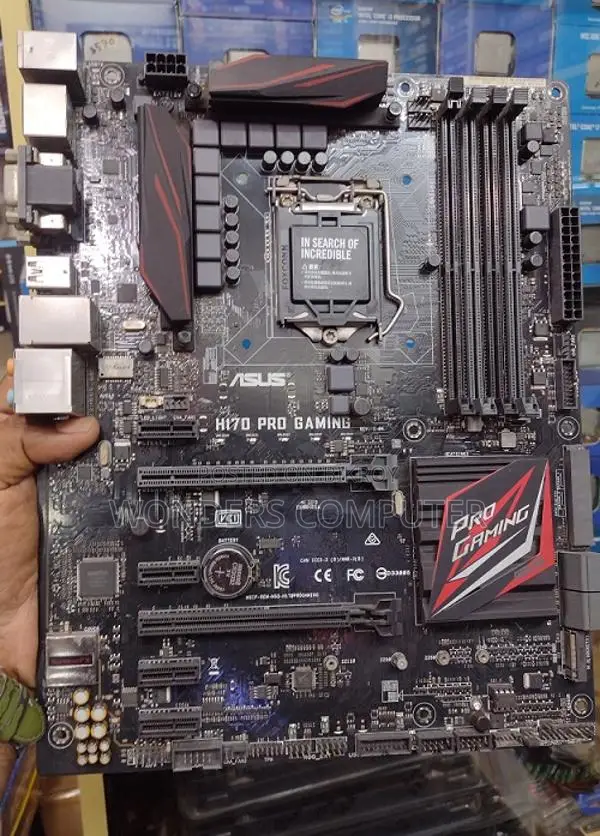

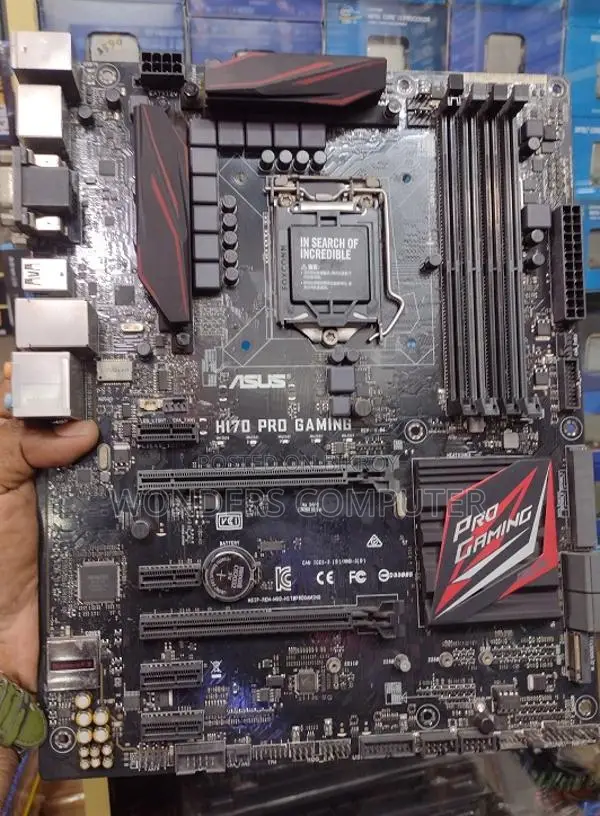

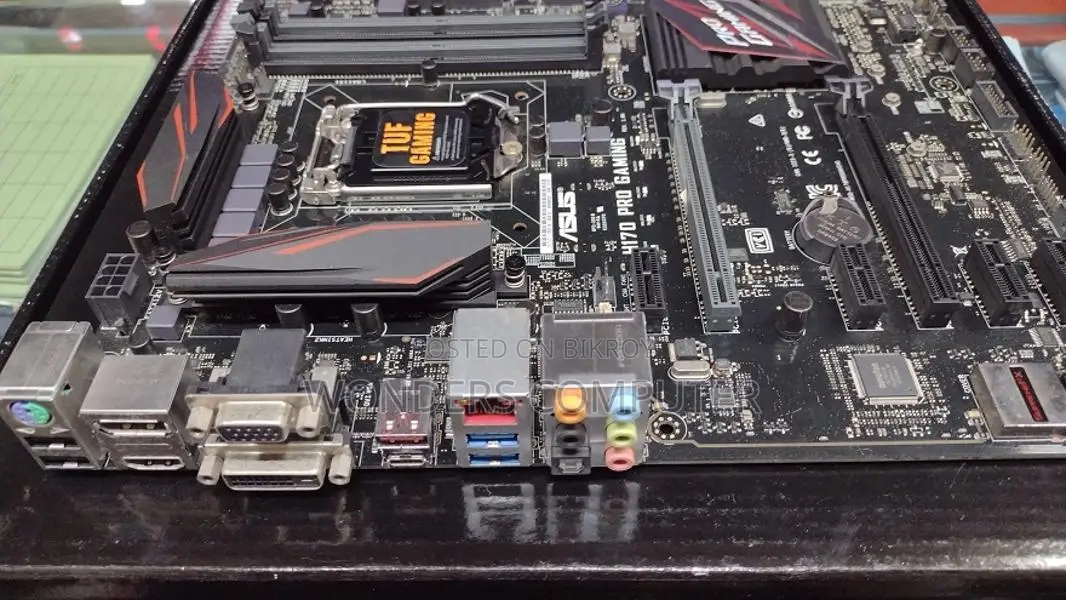

The ASUS H170 PRO GAMING is an ATX form-factor motherboard built for 6th-generation Intel LGA1151 processors (Core i7/i5/i3, Pentium, Celeron). It combines solid performance, gaming-oriented features, and modern connectivity including USB 3.1, SATA 6 Gb/s, M.2 storage, and multiple display outputs. 🧩 Key Features 🔧 CPU & Chipset Socket: Intel LGA1151 Chipset: Intel H170 Express Supports 6th-Gen Intel Core / Pentium / Celeron processors Integrated graphics support through CPU (HDMI/DVI/DisplayPort/VGA) 📏 Form Factor ATX (30.5 × 24.4 cm) — standard size for desktop cases with good expandability 🧠 Memory 4 × DDR4 DIMM slots Up to 64 GB DDR4 @ 2133 MHz (dual-channel) 🖥️ Expansion & Graphics PCIe Slots: • 1 × PCIe 3.0 ×16 • 1 × PCIe 3.0 ×16 (x4 mode) • 4 × PCIe 3.0 ×1 Multi-GPU: Supports AMD CrossFireX (NVIDIA SLI not supported) 🖥 Video Outputs (Integrated Graphics) 1 × HDMI (up to 4096×2160 @ 24 Hz) 1 × DisplayPort (up to 4096×2304 @ 60 Hz) 1 × DVI-D & 1 × VGA (up to 1920×1200) 💾 Storage Options 4 × SATA 6 Gb/s ports 1 × SATA Express port (supports 2 × SATA 6 Gb/s) 1 × M.2 Socket 3 (supports SATA and PCIe SSDs, 2242/2260/2280/22110) RAID 0, 1, 5, 10 supported 🔌 USB & Connectivity Rear USB: • 2 × USB 3.1 Gen2 (1 × Type-A, 1 × Type-C) • 2 × USB 3.0 (USB 3.1 Gen1) • 2 × USB 2.0 Internal Headers: • Extra USB 3.0 / USB 2.0 headers for front panel ports LAN: Intel Gigabit Ethernet with LANGuard and GameFirst traffic optimization 🎧 Audio SupremeFX 8-Channel High-Definition Audio Enhanced shielding, premium capacitors, Sonic Radar II and optical S/PDIF out 🛡️ Build & Protection Gamer’s Guardian protections: • DIGI+ VRM digital power • ESD Guards for USB/LAN/audio • DRAM Overcurrent Protection • Stainless Steel Back I/O 🧰 Software & BIOS Features UEFI BIOS with EZ Mode and advanced options AI Suite 3, Fan Xpert 3, RAMCache for performance and cooling control
