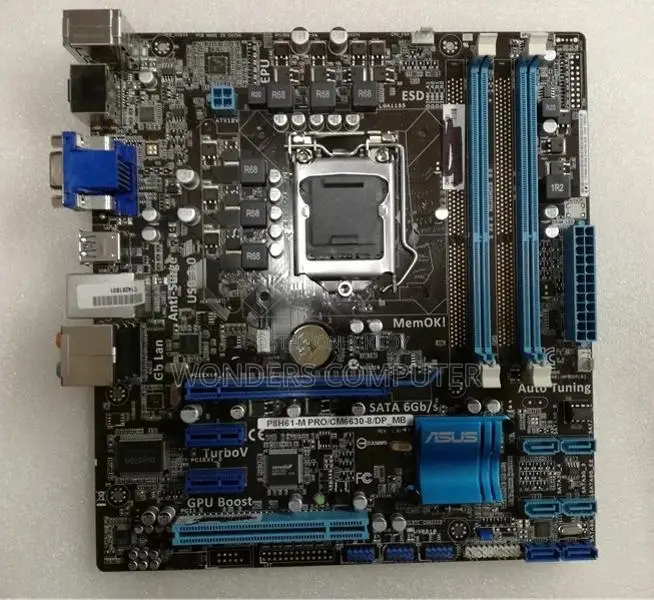

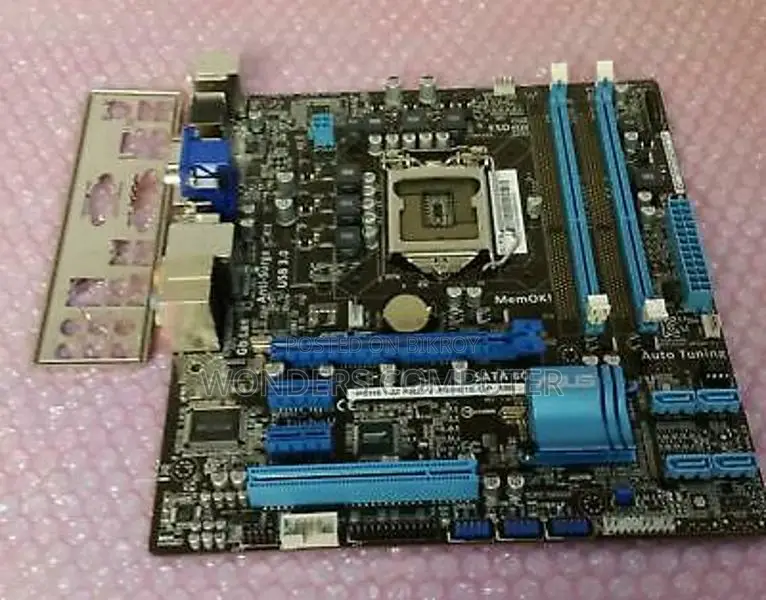

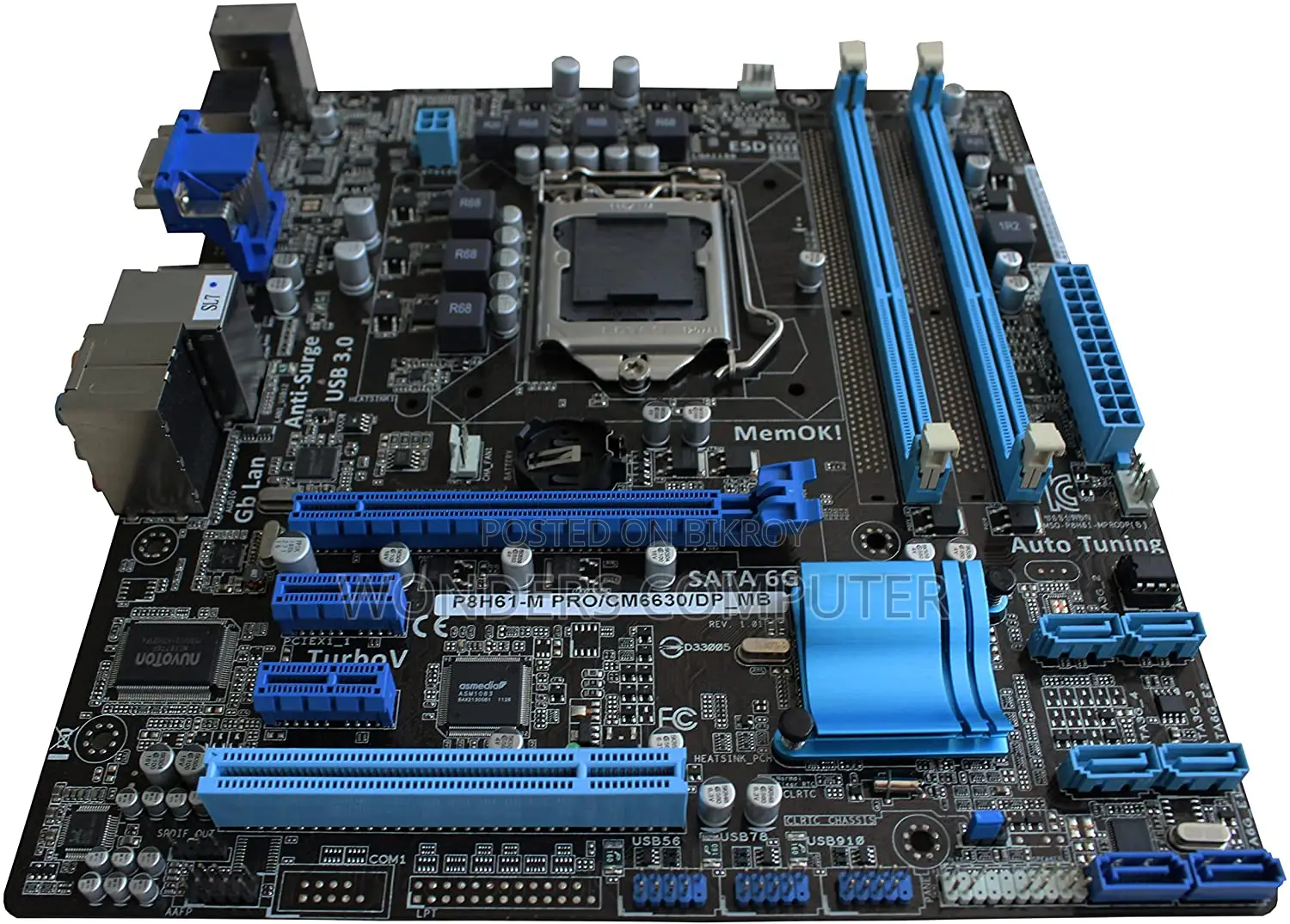

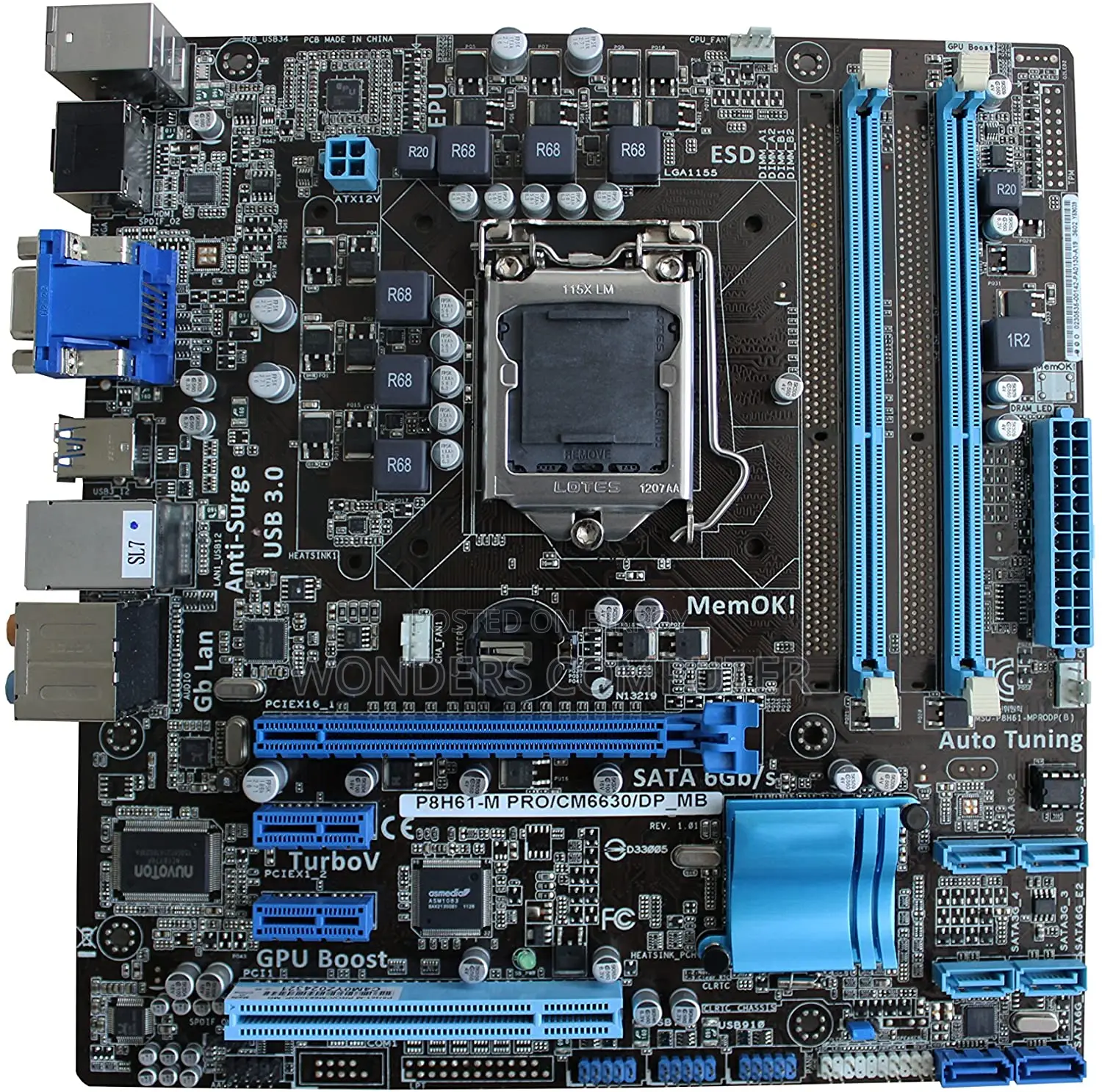

ASUS P8H61-M Pro
Feedback
Model
Brand ASUS
Model P8H61-M (REV 3.0)
Supported CPU
CPU Socket Type LGA 1155
CPU Type Core i7 / i5 / i3 (LGA1155)
Supported CPU Technologies Support Enhanced Intel SpeedStep Technology (EIST)
Supports Intel Turbo Boost Technology 2.0
Chipsets
Chipset Intel H61
Onboard Video
Onboard Video Chipset Supported only by CPU with integrated graphic
Memory
Number of Memory Slots 2x240pin
Memory Standard DDR3 1333/1066
Maximum Memory Supported 16GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 1 x PCI Express 2.0 x16
PCI Express x1 2 x PCI Express x1
PCI Slots 1 x PCI Slot
Onboard Audio
Audio Chipset Realtek ALC887
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Realtek 8111E
Max LAN Speed 1Gbps

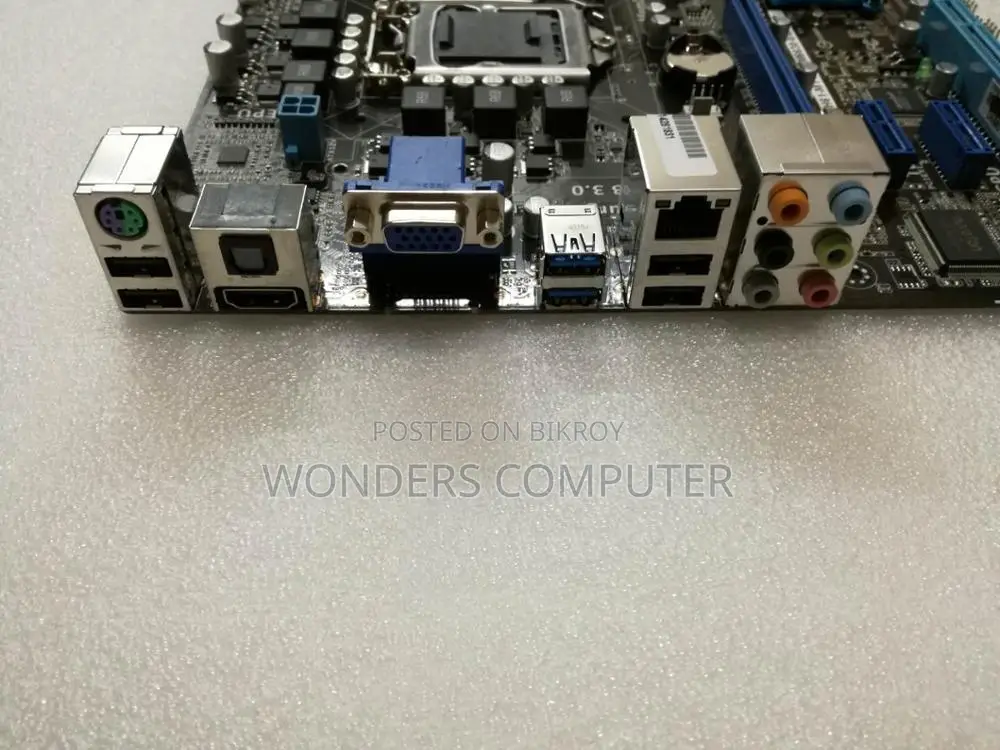

Rear Panel Ports
Back I/O Ports 1 x HDMI / 1 x Optical S/PDIF Out / 1 x PS/2 Keyboard/Mouse Combo / 6 x USB 2.0/1.1
PS/2 1 x PS/2 Keyboard/Mouse Combo port
Video Ports D-Sub + DVI
HDMI 1 x HDMI
USB 1.1/2.0 6 x USB 2.0
S/PDIF Out 1 x Optical
Audio Ports 3 Ports
Internal I/O Connectors
Onboard USB 4 x USB 2.0
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 9.6" x 8.4"
Power Pin 24 Pin
Features
Features GPU Boost - Instant iGPU Level Up!
EPU - Energy Efficiency All Around
TurboV - Easy, Real-Time O.C. Tunings
Protect 3.0 - Protect the Earth & the system & you
EFI BIOS - EZ Mode - Flexible & Easy BIOS Interface
AI Suite II - One-stop Access to Innovative ASUS Features
