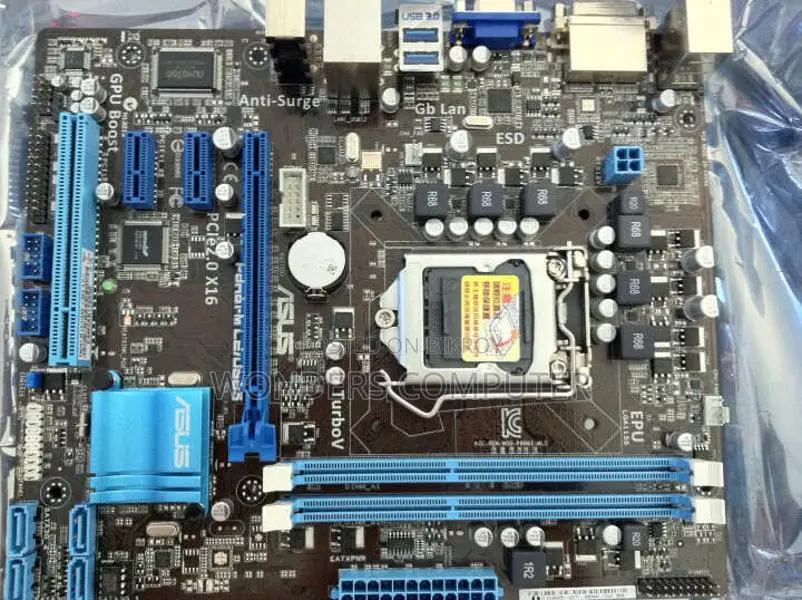

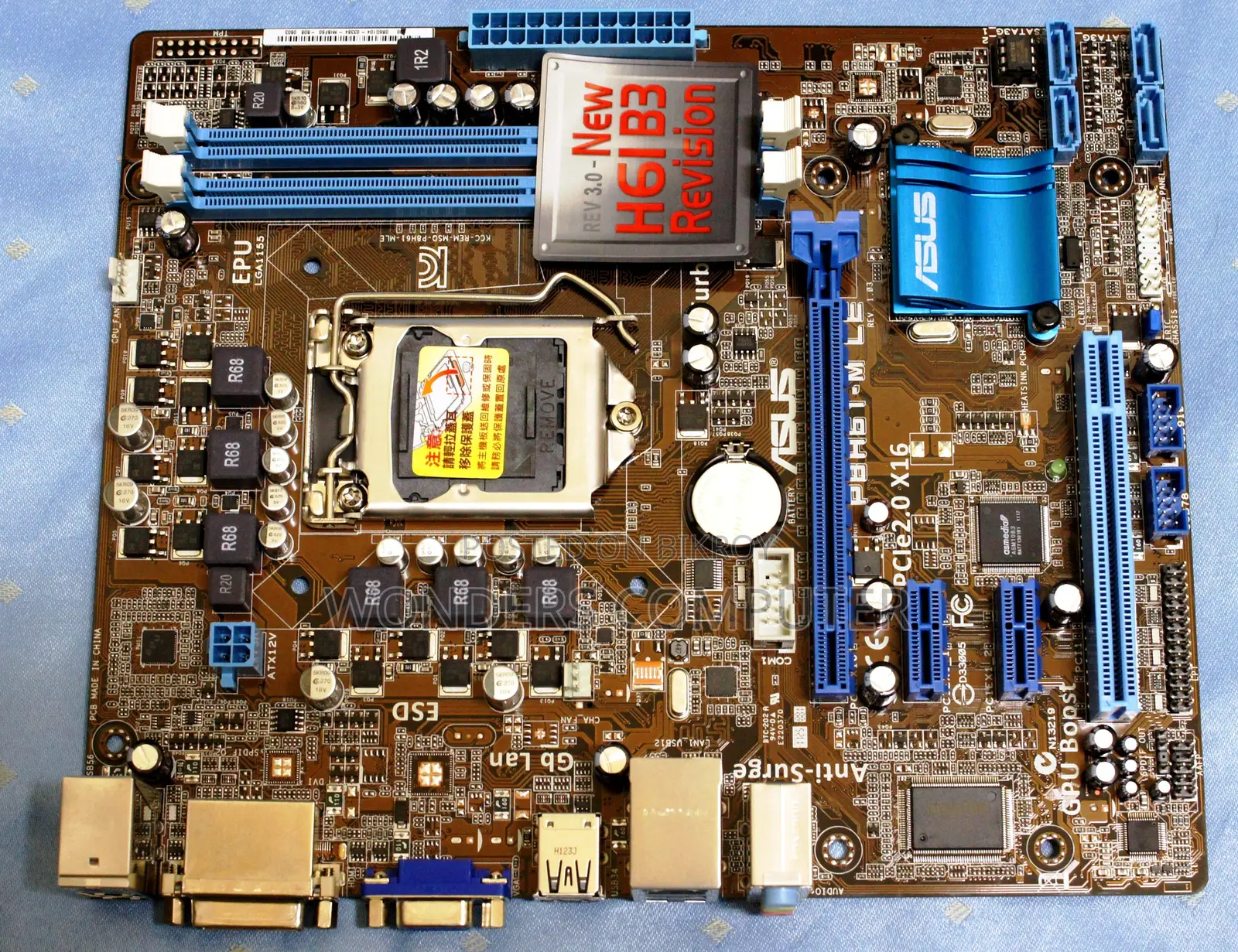

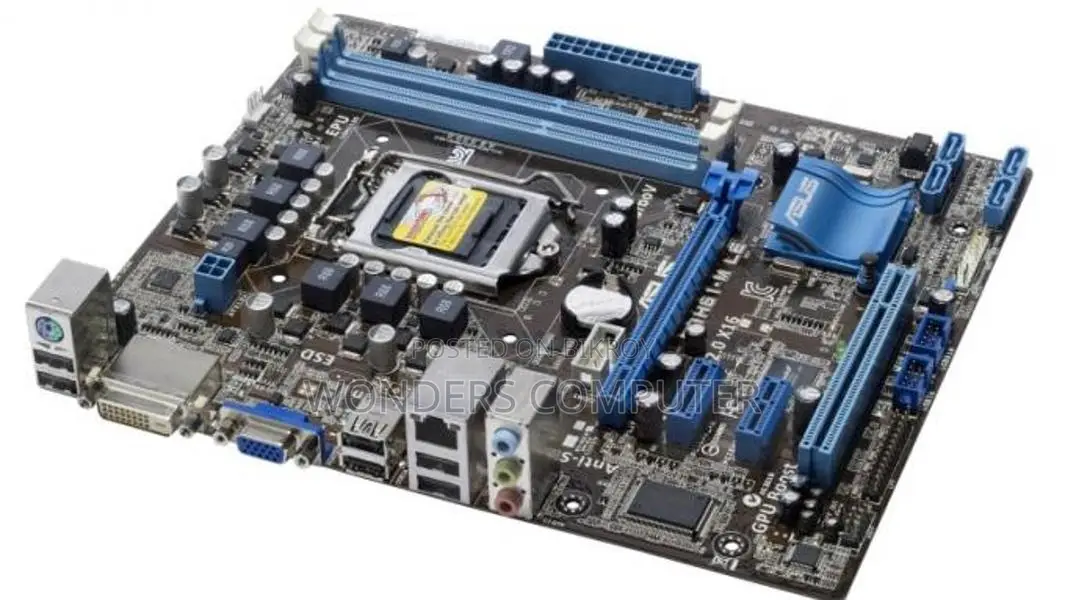

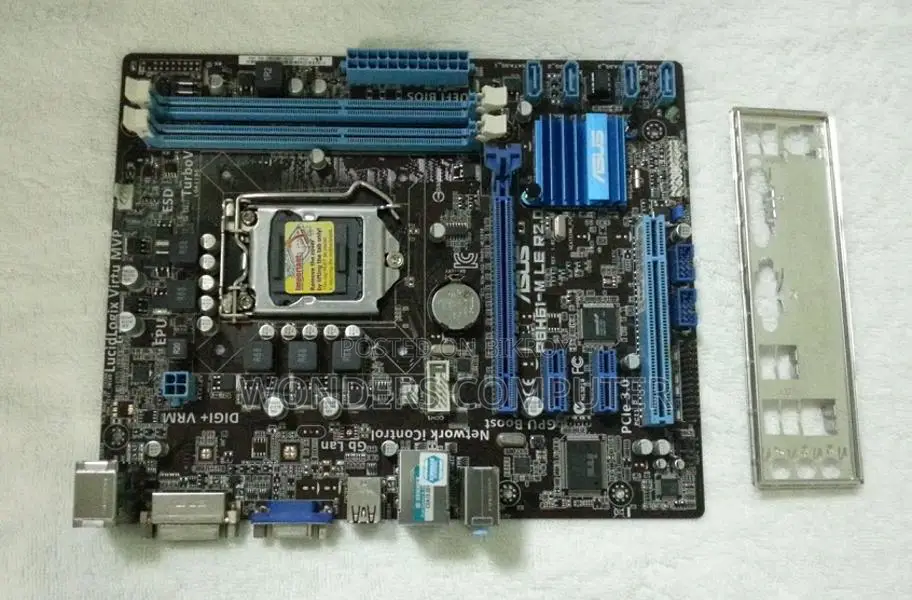

ASUS P8H61-M Pro 2nd Generation Motherboard

+1

ASUS

Brand

Used

Condition

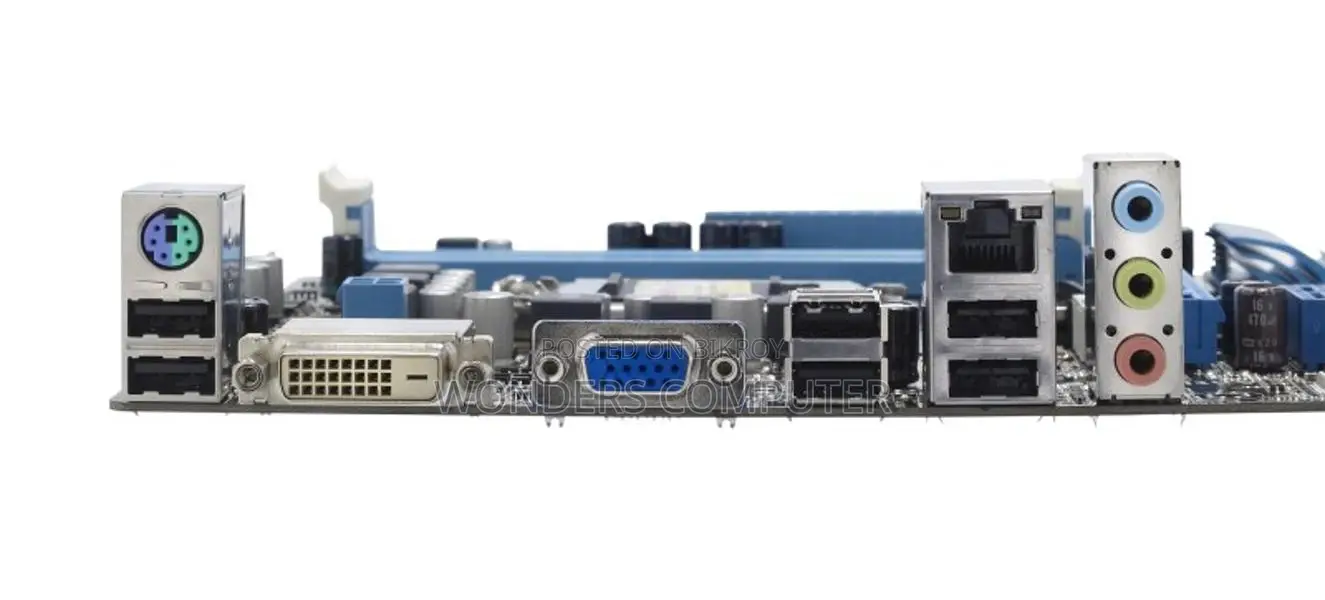

Learn more about the ASUS P8H61-M Pro Feedback Model Brand: ASUS Model: P8H61-M (REV 3.0) Supported CPU CPU Socket Type: LGA 1155 CPU Type: Core i7 / i5 / i3 (LGA1155) Supported CPU Technologies: Support Enhanced Intel SpeedStep Technology (EIST) Supports Intel Turbo Boost Technology 2.0 Chipsets Chipset: Intel H61 Onboard Video Onboard Video Chipset: Supported only by CPU with integrated graphic Memory Number of Memory Slots: 2x240pin Memory Standard: DDR3 1333/1066 Maximum Memory Supported: 16GB Channel Supported: Dual Channel Expansion Slots PCI Express 2.0 x16: 1 x PCI Express 2.0 x16 PCI Express x1: 2 x PCI Express x1 PCI Slots: 1 x PCI Slot Onboard Audio Audio Chipset: Realtek ALC887 Audio Channels: 8 Channels Onboard LAN LAN Chipset: Realtek 8111E Max LAN Speed: 1Gbps Rear Panel Ports Back I/O Ports: 1 x HDMI / 1 x Optical S/PDIF Out / 1 x PS/2 Keyboard/Mouse Combo / 6 x USB 2.0/1.1 PS/2: 1 x PS/2 Keyboard/Mouse Combo port Video Ports: D-Sub + DVI HDMI: 1 x HDMI USB 1.1/2.0: 6 x USB 2.0 S/PDIF Out: 1 x Optical Audio Ports: 3 Ports Internal I/O Connectors Onboard USB: 4 x USB 2.0 Physical Spec Form Factor: Micro ATX Dimensions (W x L): 9.6" x 8.4" Power Pin: 24 Pin Features Features: GPU Boost - Instant iGPU Level Up! EPU - Energy Efficiency All Around TurboV - Easy, Real-Time O.C. Tunings Protect 3.0 - Protect the Earth & the system & you EFI BIOS - EZ Mode - Flexible & Easy BIOS Interface AI Suite II - One-stop Access to Innovative ASUS Features
