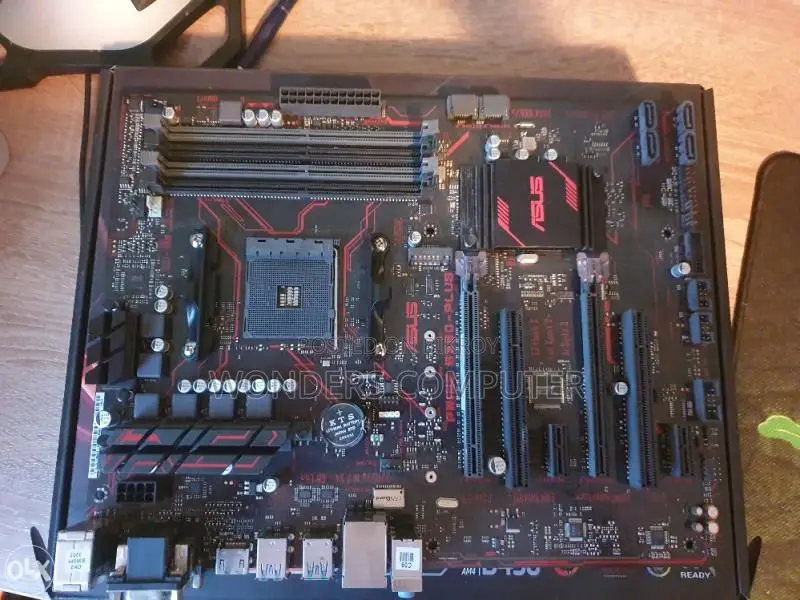

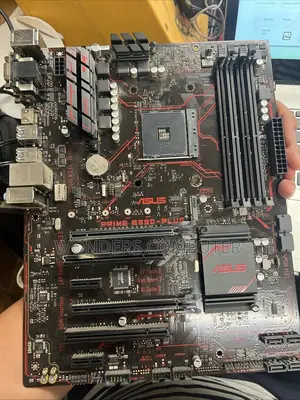

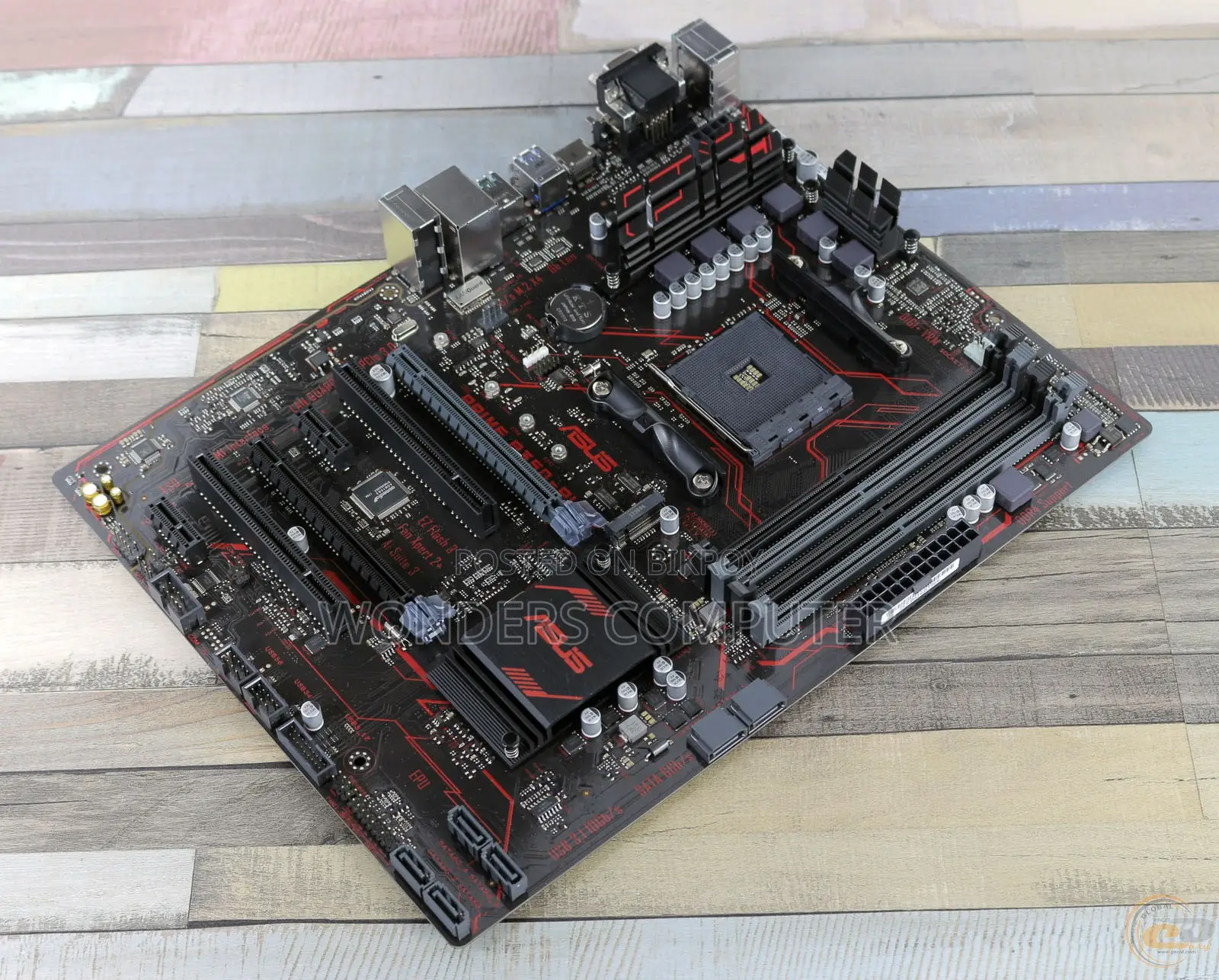

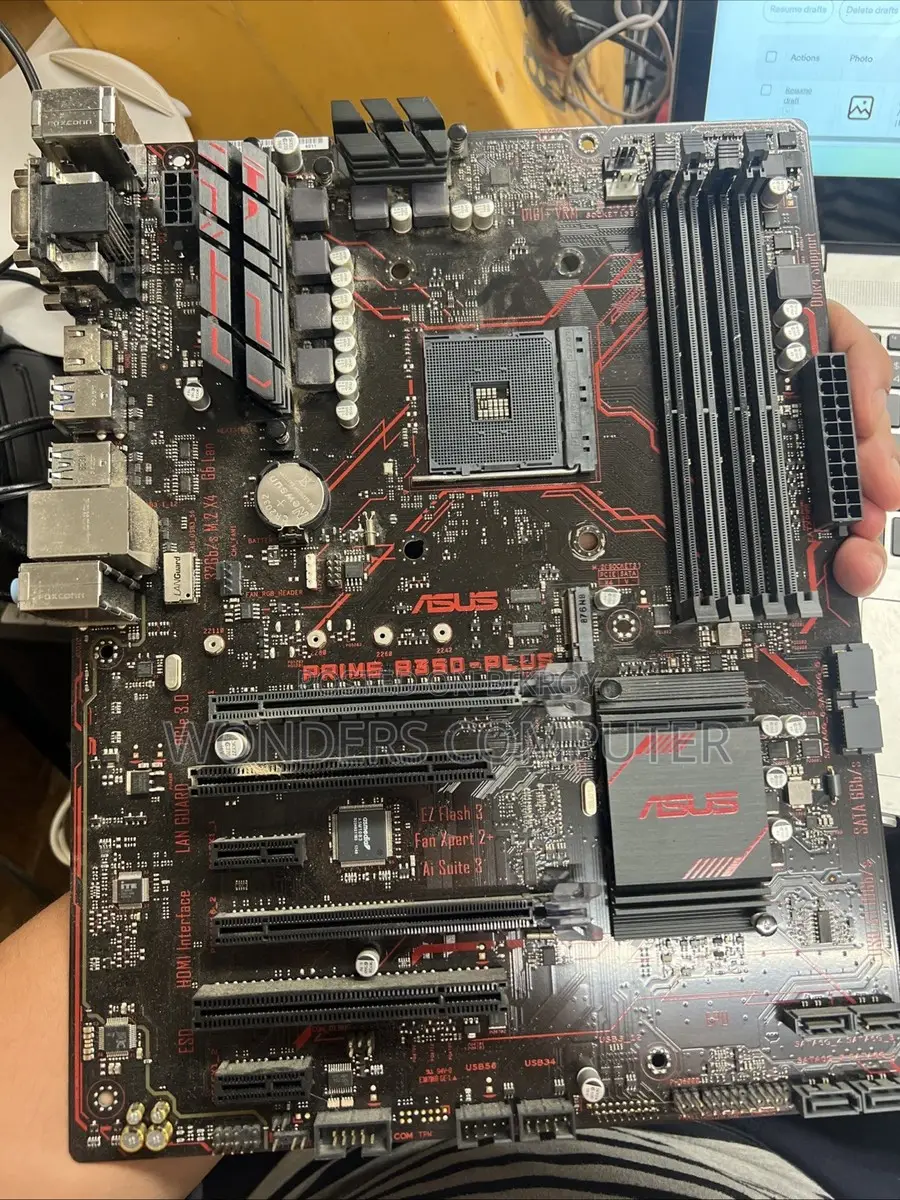

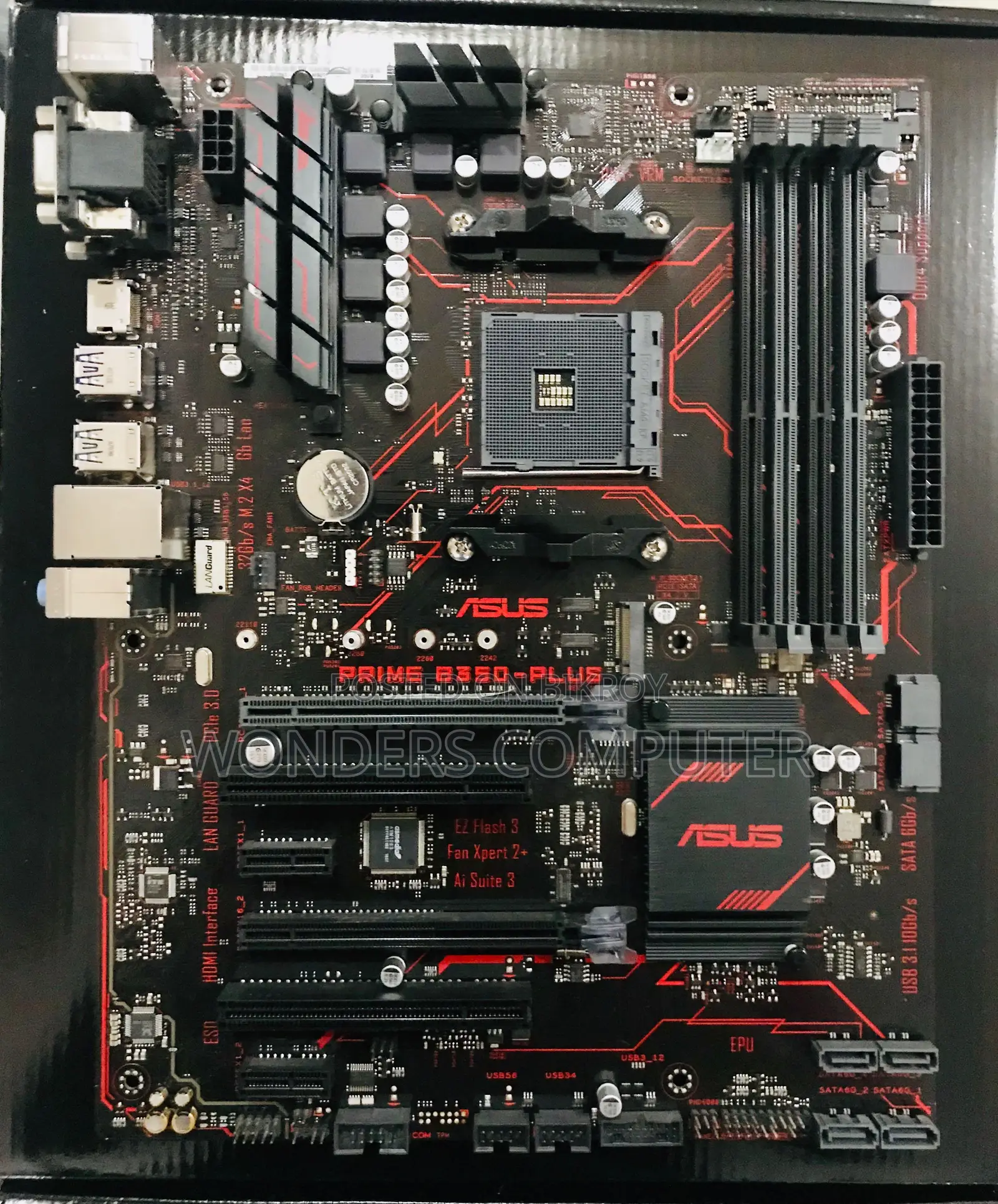

ASUS PRIME B350-PLUS AM4 AMD B350 USB 3.1 HDMI ATX Motherboards -

Learn more about the ASUS PRIME B350-PLUS Inaccurate specs? Let us know Feedback Model Brand ASUS Model PRIME B350-PLUS Supported CPU CPU Socket Type AM4 CPU Type AMD AM4 Socket for AMD Ryzen/ 7th Generation A-series/Athlon Processors * Refer to www.asus.com for CPU support list Chipsets Chipset AMD B350 Memory Number of Memory Slots 4x288pin (DDR4) Memory Standard AMD Ryzen Processors DDR4 3200(O.C.)/ 2933(O.C.)/ 2666/ 2400/ 2133*1 AMD 7th Generation A-series/ Athlon Processors DDR4 2400/ 2133 *1 Due to the limitation of AMD Ryzen processors, memory frequencies higher than DDR4 2666 MHz are supported only when using one DIMM per channel. * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). Maximum Memory Supported 64GB Channel Supported Dual Channel Expansion Slots PCI Express 3.0 x16 AMD Ryzen Processors 1 x PCIe 3.0/2.0 x16 (x16 mode) AMD 7th Generation A-series/Athlon Processors 1 x PCIe 3.0/2.0 x16 (x8 mode) PCI Express 2.0 x16 1 x PCI Express 2.0 x16 slot (max.@x4 mode) *3 *3 PCIeX16_2 slot shares bandwidth with PCIeX1_1 and PCIeX1_2. PCI Express x1 2 x PCI Express 2.0 x1 slots PCI Slots 2 x PCI Slots Storage Devices Serial ATA (SATA) AMD B350 chipset: 4 x SATA 6Gb/s port(s), gray AMD Ryzen/ 7th Generation A-series/Athlon Processors: 2 x SATA 6Gb/s port(s), gray M.2 AMD Ryzen Processors: 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x4 mode)*4 AMD 7th Generation A-series/Athlon Processors: 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x2 mode)*5 *4 The M.2 Socket shares bandwidth with the SATA6G_5/6 ports, therefore the SATA6G_5/6 ports cannot be used when a SATA/PCIE mode M.2 device is installed. *5 The M.2 Socket shares bandwidth with the SATA6G_5/6 ports, therefore the SATA6G_5/6 ports cannot be used when a SATA/PCIE mode M.2 device is installed. SATA RAID 0/1/10 Onboard Video Onboard Video Chipset Integrated AMD Radeon R Series Graphics in the 7th Generation A-Series APU *2 Multi-VGA output support: HDMI/DVI/RGB ports - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 2048MB *2 AMD Ryzen Processor does not support. Onboard Audio Audio Chipset Realtek ALC887 Audio Channels 8 Channels Onboard LAN LAN Chipset Realtek RTL8111H Max LAN Speed 1Gbps
