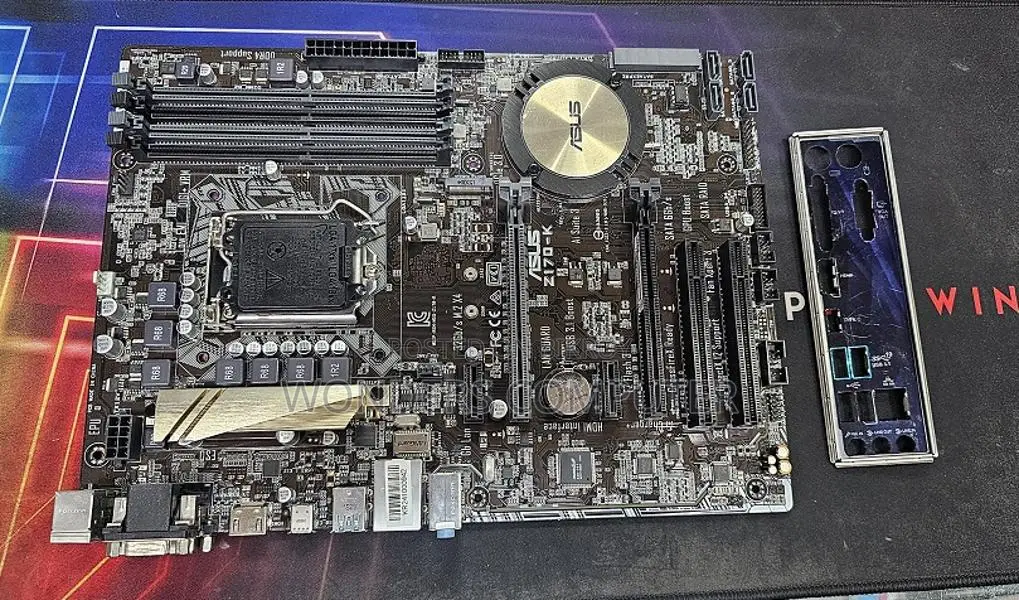

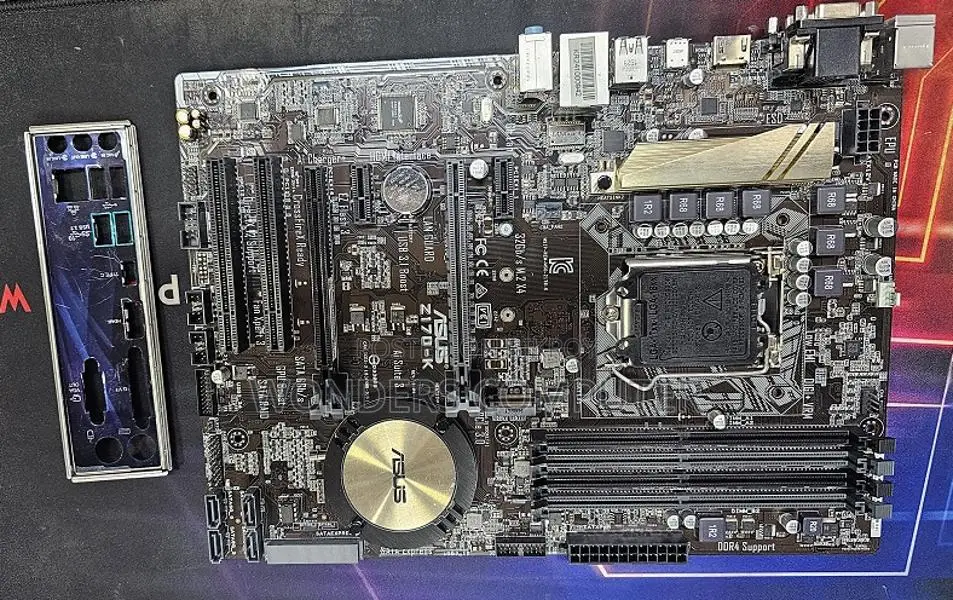

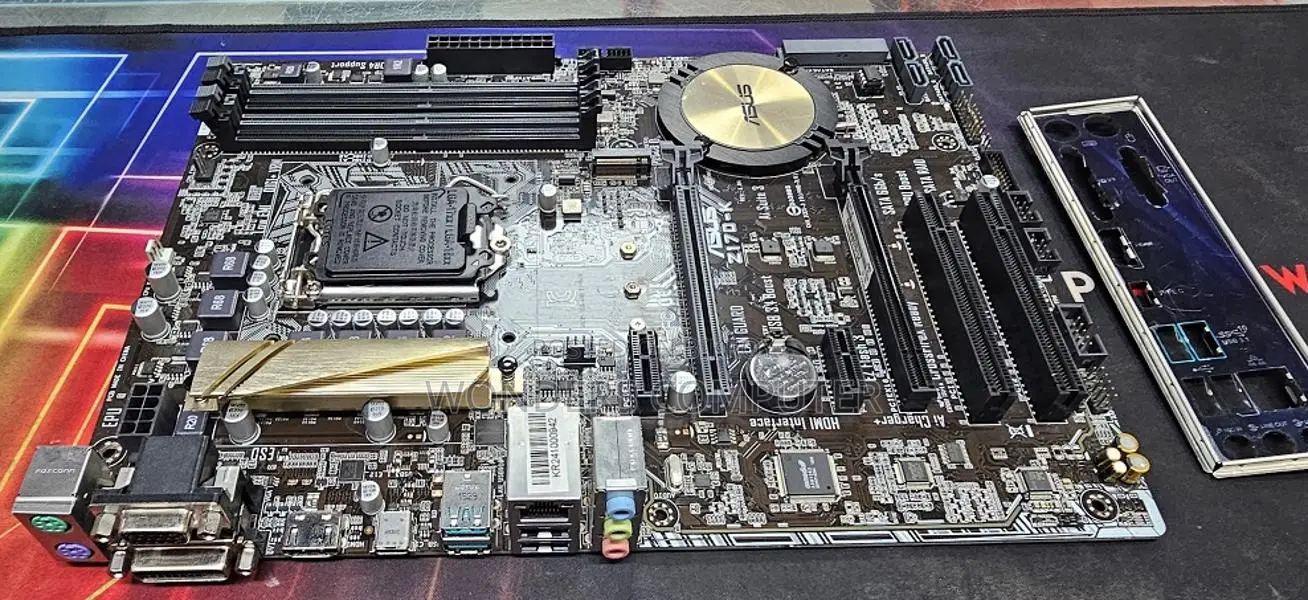

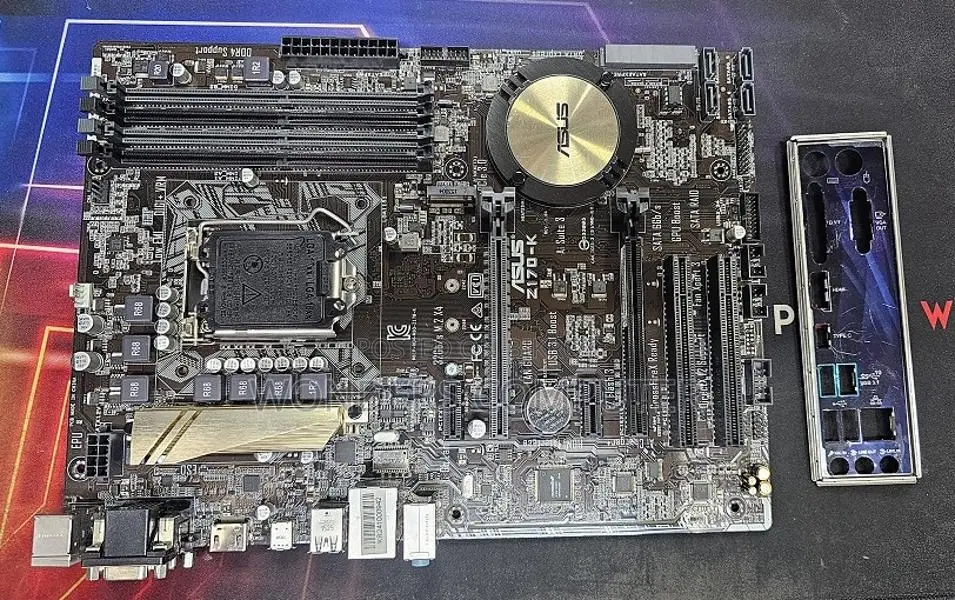

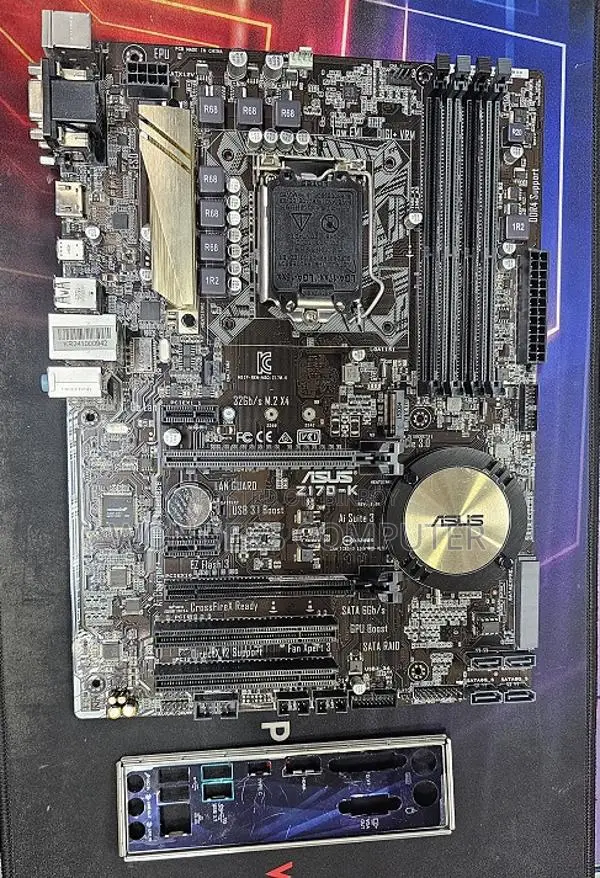

ASUS Z170-K is an ATX motherboard that supports 6th and 7th generation

Description ASUS Z170-K is an ATX motherboard that supports 6th and 7th generation Intel Core processors and DDR4 memory, offering a balance of performance and value for a desktop PC build. It features a range of connectivity options including M.2, USB 3.1, and multiple expansion slots. Key Specifications Feature Detail Processor Socket LGA 1151 socket for 6th Gen (Skylake) and 7th Gen (Kaby Lake) Intel Core i7, i5, i3, Pentium, and Celeron processors Chipset Intel Z170 Express Form Factor ATX (30.5 cm x 22.4 cm) Memory 4 x DIMM slots, Max. 64GB DDR4, with support for overclocking up to 3466 MHz (O.C.) Expansion Slots 1 x PCIe 3.0/2.0 x16 (x16 mode), 1 x PCIe 3.0/2.0 x16 (max at x4 mode), 2 x PCIe 3.0/2.0 x1, 2 x PCI slots Storage 1 x M.2 Socket 3 (supports both SATA & PCIe mode up to 32 Gb/s), 1 x SATA Express port, 6 x SATA 6Gb/s ports (supports RAID 0, 1, 5, 10) USB Ports 2 x USB 3.1 Type-A ports (rear panel, up to 10 Gb/s), 1 x USB 5Gb/s Type-C port (rear panel), 4 x additional USB 3.0 ports (via internal headers), 6 x additional USB 2.0 ports (2 rear, 4 via internal headers) Video Outputs HDMI, DVI-D, VGA ports Audio Realtek ALC887 8-Channel High Definition Audio CODEC with audio shielding and premium Japanese-made capacitors LAN Realtek RTL8111H Gigabit LAN controller with ASUS LANGuard protection Key Features ASUS 5X Protection II Advanced hardware safeguards including LANGuard, Overvoltage Protection, DIGI+ VRM, DRAM Overcurrent Protection, and a stainless-steel back I/O for long-term durability and system stability. Media-acclaimed UEFI BIOS A mouse-controlled graphical interface with EZ and Advanced Modes, allowing for simple setup, monitoring, and advanced configuration like RAID setup and fan control. High-Speed Connectivity Includes modern connectivity options like M.2, USB 3.1, and USB Type-C, providing fast data transfer speeds for contemporary peripherals and storage devices. DDR4 Overclocking The motherboard features ASUS 2nd generation T-Topology to enable DDR4 memory overclocking to speeds over 3466 MHz with improved stability. User Reviews Reviewers and experts regard the ASUS Z170-K as a reliable and cost-effective motherboard, particularly suitable for those building a high-performance PC with a focus on value and stability. Users praise its sturdy design and the range of ports available, especially the inclusion of USB 3.1 and M.2 support, making it a good choice for connecting multiple modern peripherals and storage. The motherboard is noted for providing stable and consistent performance, making it ideal for general computing, gaming with a mid-range GPU, and productivity tasks using an i5 or i7 processor. Some expert opinion, according to a source from AliExpress, suggests that while it is an excellent platform for general use, those planning extensive, high-end overclocking with "K" series CPUs might find the cooling solution less robust compared to more premium motherboard lines like the Maximus series. Overall, the consensus among users is that it provides an excellent price-t
