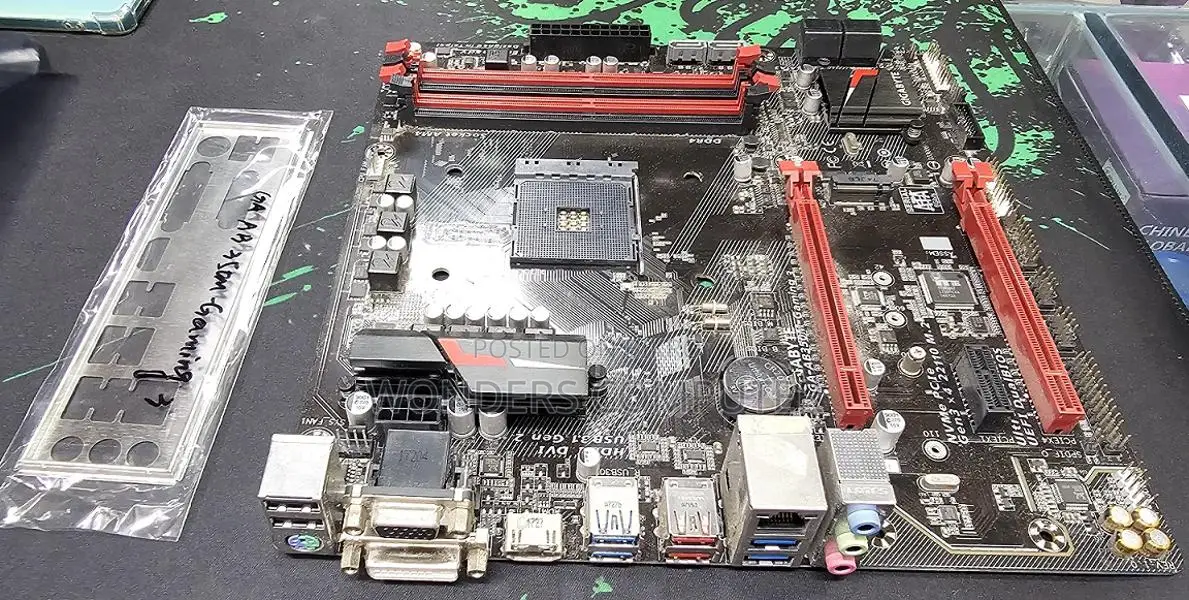

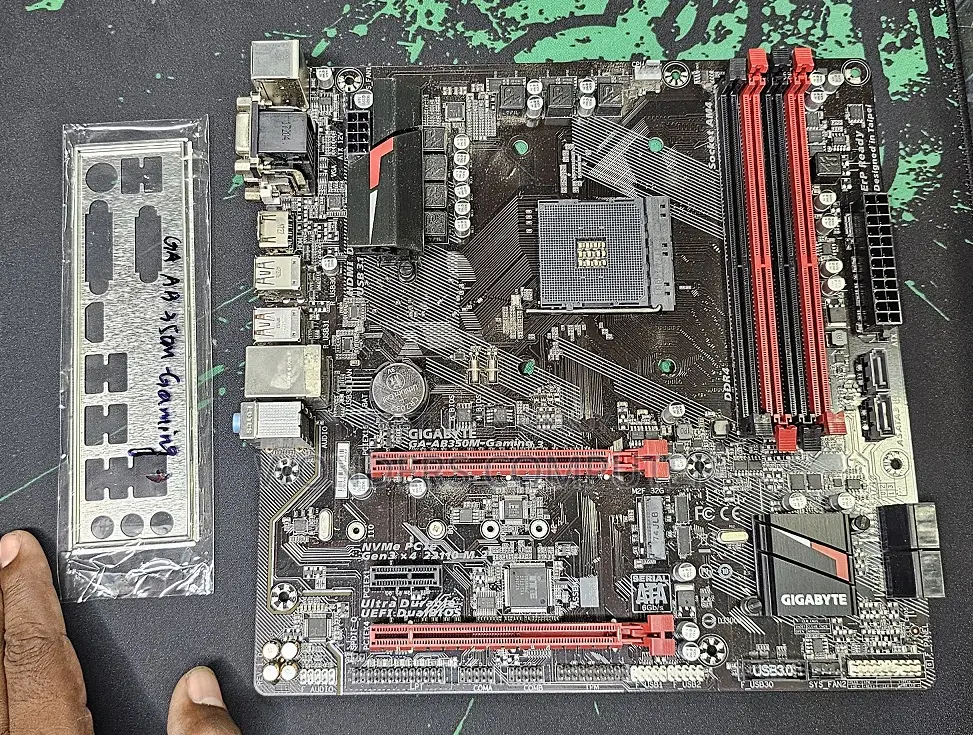

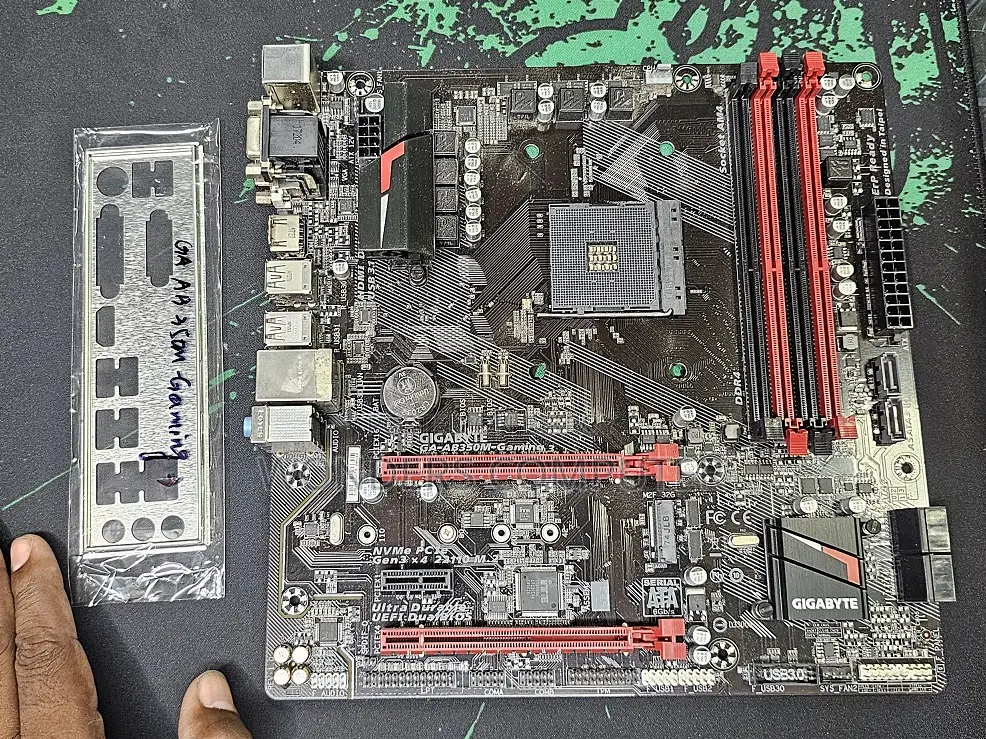

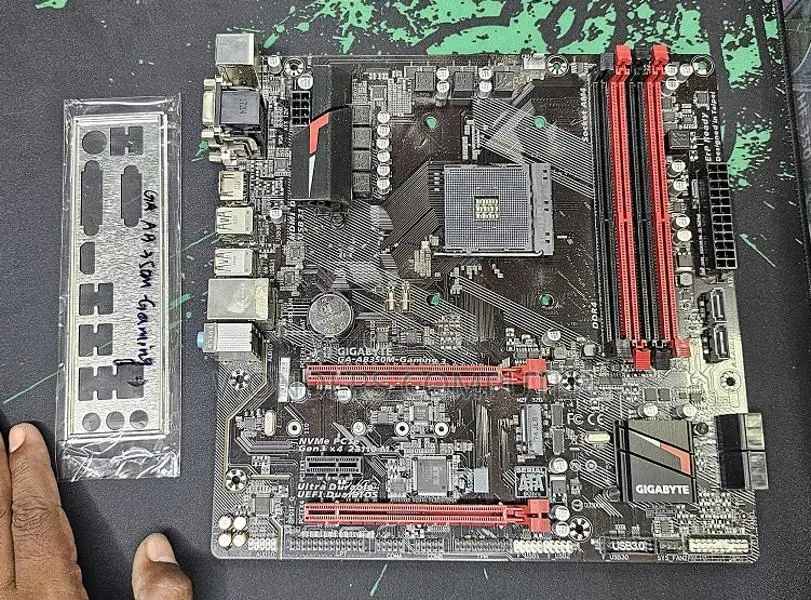

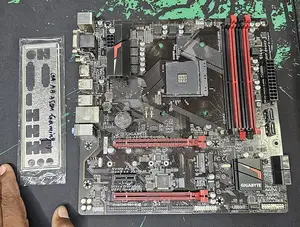

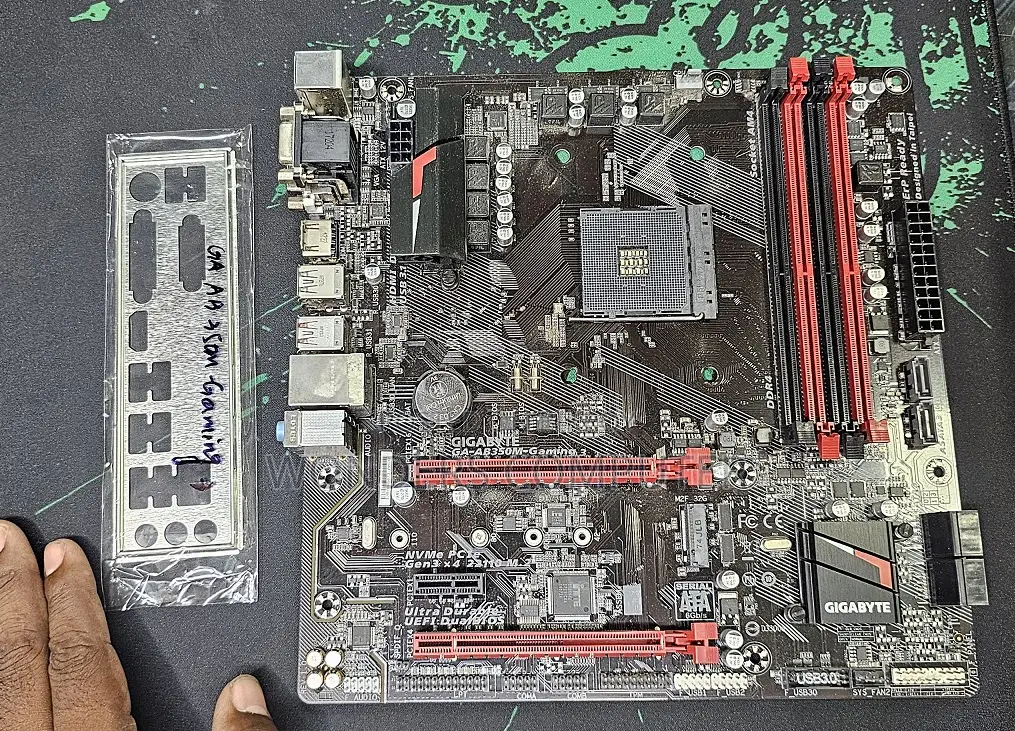

Gigabyte Ga-ab350m-gaming 3 (Rev. 1.0) Am4 Amd B350 Usb 3.1 Hdmi

GIGABYTE GA-AB350M-Gaming 3 (rev. 1.0) AM4 AMD B350 USB 3.1 HDMI Micro ATX AMD Motherboard Learn more about the GIGABYTE GA-AB350M-Gaming 3 (rev. 1.0) Model Brand GIGABYTE Model GA-AB350M-Gaming 3 (rev. 1.0) Supported CPU CPU Socket Type AM4 CPU Type AM4 Socket: AMD Ryzen processor AMD 7th Generation A-series/ Athlon processor Chipsets Chipset AMD B350 Memory Number of Memory Slots 4x288pin (DDR4) Memory Standard DDR4 3200(O.C.)/ 2933(O.C.)/ 2667*/ 2400/ 2133 * Support for higher than DDR4 2667 MHz may vary by CPU. Maximum Memory Supported 64GB Channel Supported Dual Channel Expansion Slots PCI Express 3.0 x16 1 x PCI Express x16 slot, running at x16 (PCIEX16) For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Actual support may vary by CPU. (The PCIEX16 slot conforms to PCI Express 3.0 standard.) PCI Express 2.0 x16 1 x PCI Express x16 slot, running at x4 (PCIEX4) PCI Express x1 1 x PCI Express x1 slot (The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.) Storage Devices Serial ATA (SATA) 6 x SATA 6Gb/s M.2 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4* / x2 SSD support) * Actual support may vary by CPU. SATA RAID 0/1/10 Onboard Video Onboard Video Chipset Integrated Graphics Processor: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz * Support for HDMI 1.4 version. Support for up to 3 displays at the same time Maximum shared memory of 2GB * Actual support may vary by CPU. Onboard Audio Audio Chipset Realtek ALC887 Audio Channels 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out Onboard LAN LAN Chipset Realtek GbE LAN Max LAN Speed 1Gbps Rear Panel Ports Back I/O Ports 1 x D-Sub / 1 x DVI-D / 1 x HDMI / 1 x LAN (RJ45) / 1 x PS/2 / 2 x USB 2.0/1.1 / 2 x USB 3.1 Gen 2 Type-A / 3 x Audio Jacks / 4 x USB 3.1 Gen 1 PS/2 1 x PS/2 keyboard/mouse port Video Ports 1 x D-Sub port 1 x DVI-D port HDMI 1 x HDMI RJ45 1 x RJ45 USB 3.1 4 x USB 3.1 Gen 1 ports 2 x USB 3.1 Gen 2 Type-A ports (red) USB 1.1/2.0 2 x USB 2.0 Audio Ports 3 x audio jacks (Line In, Line Out, Mic In) Internal I/O Connectors Onboard USB 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers Other Connectors 1 x CPU fan header 2 x system fan headers 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x Trusted Platform Module (TPM) header 2 x serial port headers 1 x parallel port header 1 x Clear CMOS jumper Physical Spec Form Factor Micro ATX Dimensions (W x L) 9.6" x 9.6" Power Pin 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector Features Features I/O Controller: iTE I/O Controller Chip H/W Monitoring: Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the fan you install. BIOS: 2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features: Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS 3D OSD AutoGreen Ambient LED BIOS Setup Cloud Station Color Temperature EasyTune Fast Boot Game Boost ON/OFF Charge Smart Backup Smart Keyboard Smart TimeLock System Information Viewer USB Blocker V-Tuner Support for Q-Flash Support for Xpress Install
