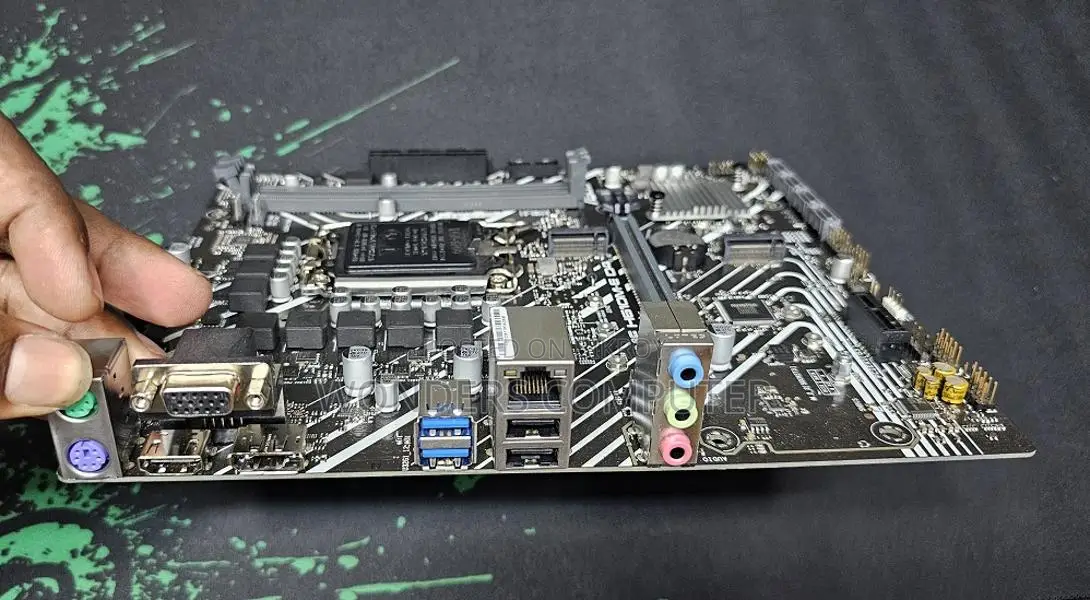

GIGABYTE H610M S2H DDR4 H610 Intel LGA 1700 Micro ATX Motherboard

GIGABYTE H610M S2H DDR4 H610 Intel LGA 1700 Micro ATX Motherboard Specification Basic Information Supported CPU LGA1700 socket: Support for 14th, 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU Chipset Intel H610 Express Chipset BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Form Factor Micro ATX Form Factor; 23.0cm x 21.5cm Audio Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Expansion Slots PCI 1 x PCI Express x16 slot, running at x16 * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCI Express x16 slot conforms to PCI Express 4.0 standard.) 1 x PCI Express x1 slot (The PCI Express x1 slot conforms to PCI Express 3.0 standard.) Memory Type: DDR4 Slots: 2 x DDR DIMM sockets Supported Memory: 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Maximum Memory: Up to 64 GB (32 GB single DIMM capacity) of system memory Graphics Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports Connector & Ports HDMI: 1 x HDMI 2.0 port D-Sub (s): 1 x D-Sub port USB (s): Chipset: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers LAN Port (s): Intel GbE LAN chip (1 Gbps/100 Mbps) Supported Storage Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 3.0 x4/x2 SSD support) 4 x SATA 6Gb/s connectors Audio: 3 x audio jacks Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x CPU fan header 2 x system fan headers 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Clear CMOS jumper
