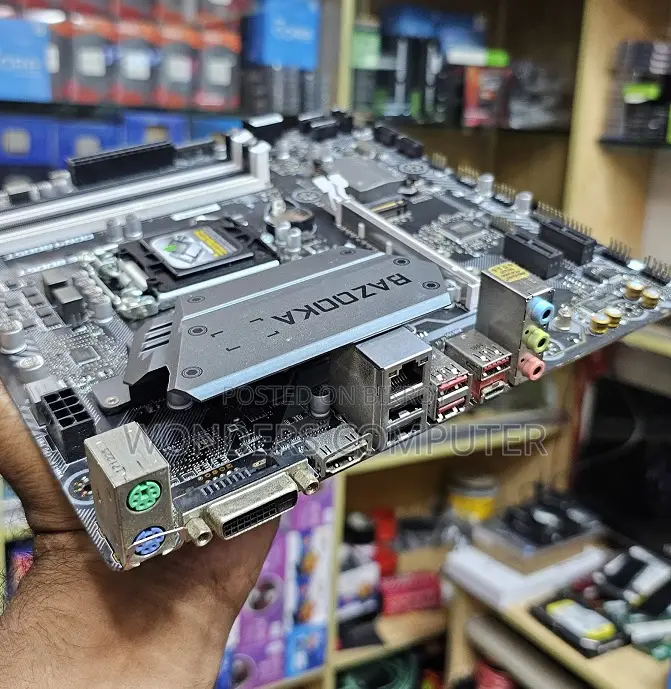

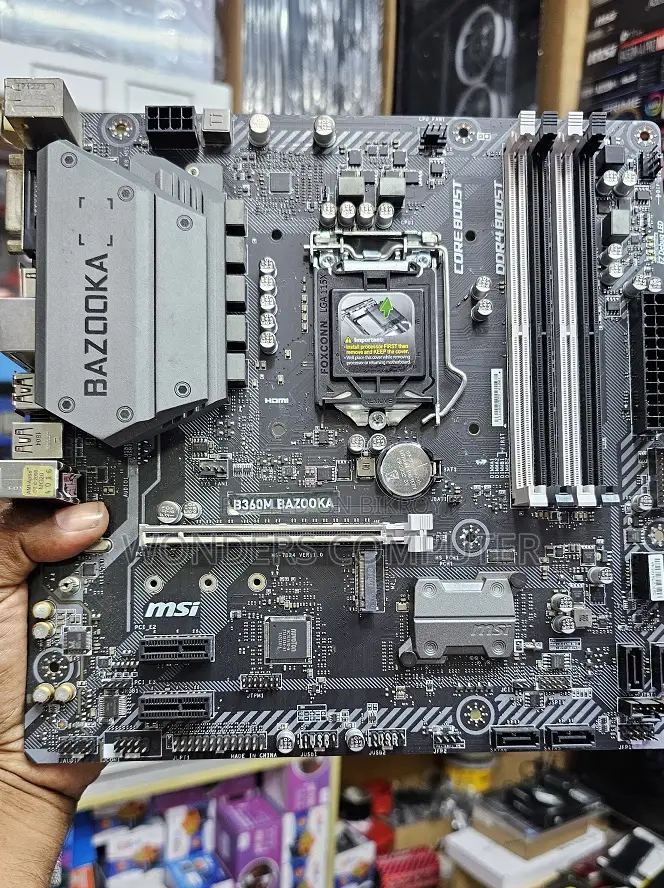

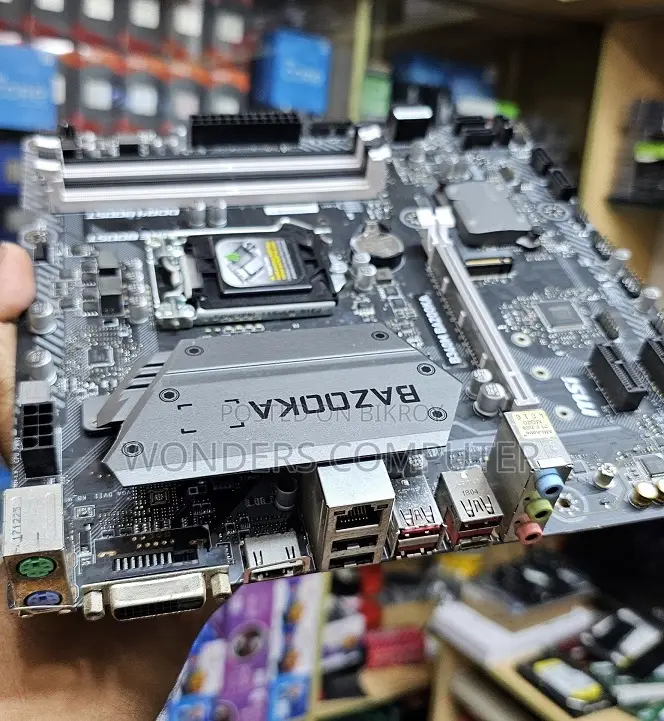

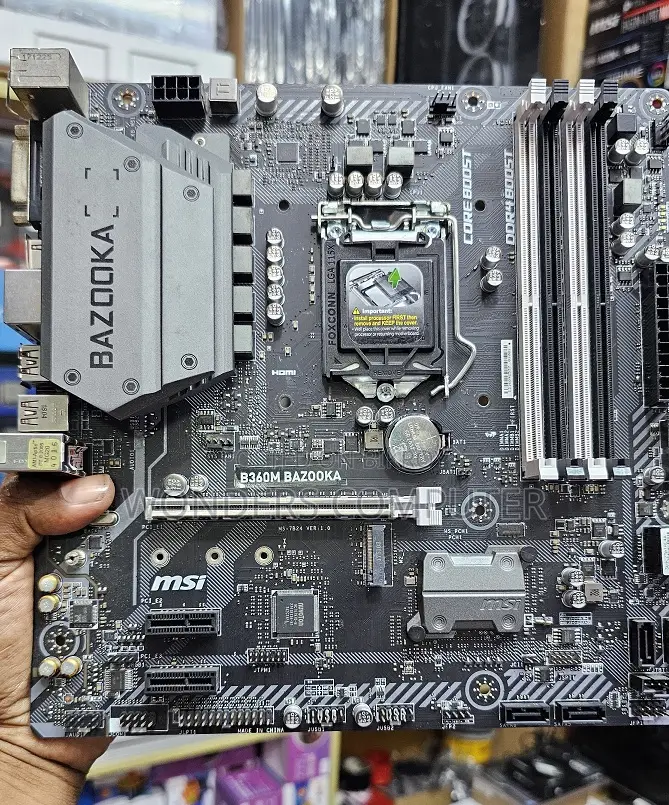

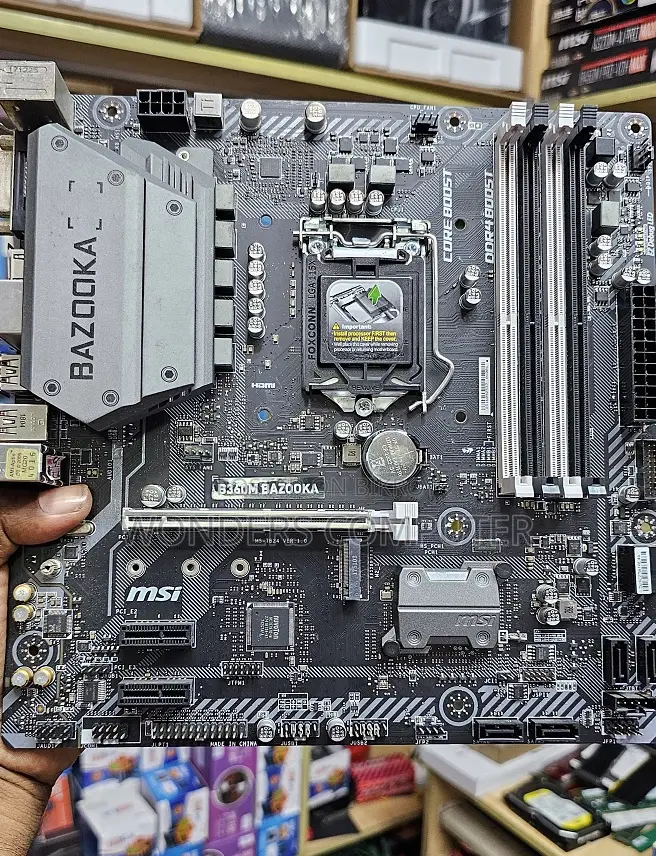

MSI B360M BAZOOKA for Intel 8th and 9th Gen CPUs

+1

1

MSI

Brand

Used

Condition

🧰 Overview – MSI B360M BAZOOKA Motherboard Model: MSI B360M Bazooka Form Factor: Micro-ATX (mATX) Creatus Computer Chipset: Intel B360 chipset Creatus Computer CPU Socket: LGA 1151 (Socket H4) – for Intel 8th and 9th Gen CPUs Creatus Computer 👉 This board works with Intel 8th Gen and 9th Gen Core / Pentium Gold / Celeron processors (e.g., Core i3-8100, i5-9400F, i7-9700) — as long as the BIOS supports your specific model. Creatus Computer 🧠 CPU & Memory Support CPU: ✔ 8th Gen & 9th Gen Intel Core, Pentium, and Celeron CPUs on LGA1151. Creatus Computer Memory: 4 × DDR4 DIMM slots Dual-channel architecture Supports DDR4-2666 / 2400 / 2133 MHz memory Maximum capacity: 64 GB Creatus Computer 🧱 Expansion & Graphics PCIe Slots: 1 × PCIe 3.0 x16 (for discrete GPU) 2 × PCIe 3.0 x1 slots for smaller expansion cards Creatus Computer Integrated Graphics Outputs (if CPU has iGPU): DVI-D HDMI 1.4 (up to 4K @ 30 Hz) Creatus Computer 💾 Storage Support 1 × M.2 slot (Key M) — support up to PCIe 3.0 x4 and SATA SSDs (2242/2260/2280/22110) 6 × SATA III (6 Gb/s) ports Intel Optane Memory Ready Creatus Computer 🔌 Connectivity & I/O Rear I/O includes: USB Type-C + USB Type-A (USB 3.1 Gen1) USB 2.0 ports HDMI & DVI-D display outputs Gigabit LAN (Realtek 8111H) Audio jacks (Realtek ALC887 7.1-channel) Creatus Computer Internal headers also provide additional USB ports and other connections. Creatus Computer 🔊 Audio & LAN Realtek ALC887 7.1-Channel High-Definition Audio Realtek 8111H Gigabit Ethernet - reliable wired networking Creatus Computer 📦 Design & Features Turbo M.2 support for fast NVMe SSDs TechLand BD DDR4 Boost & Core Boost technologies for memory/CPU performance stability Ascend Tech Audio Boost for better onboard sound quality Ascend Tech EZ Debug LED for easier troubleshooting Ascend Tech 📌 Compatibility Summary ✅ Compatible CPUs: Intel 8th Gen (e.g., i3-8100, i5-8400, i7-8700) Intel 9th Gen (e.g., i3-9100, i5-9400, i7-9700) (BIOS may need update for some 9th-Gen models)
