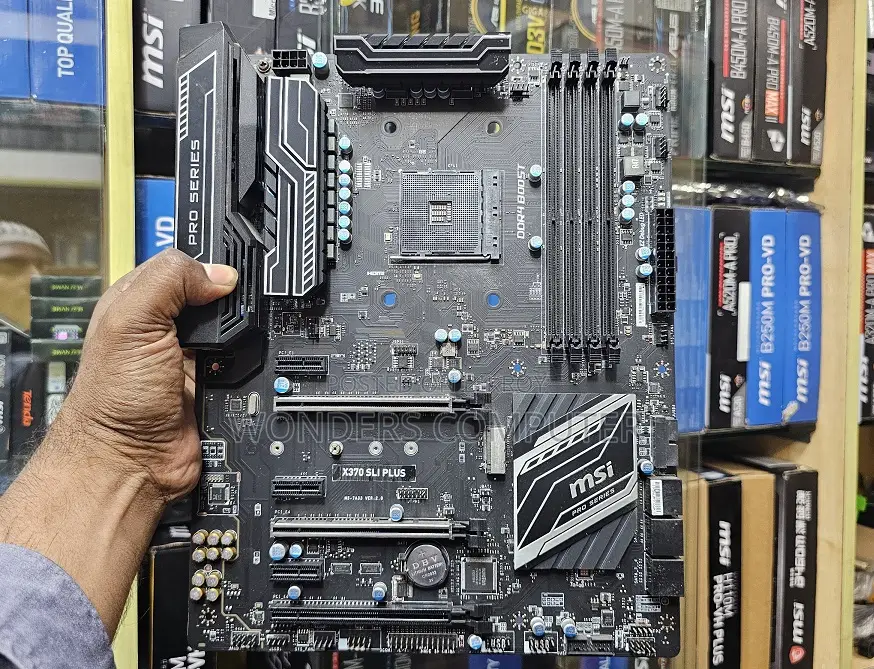

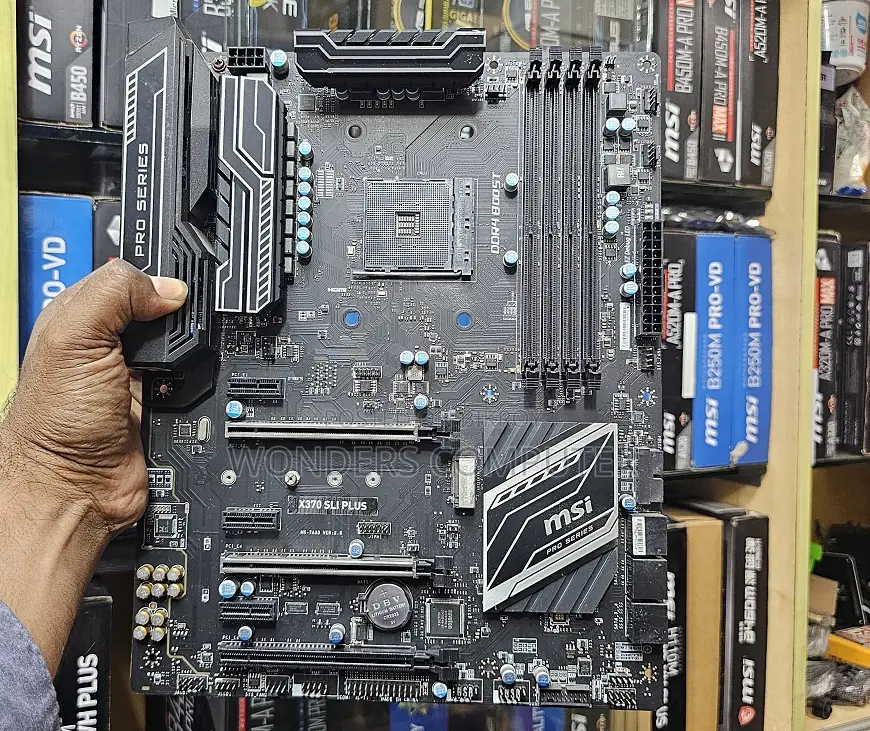

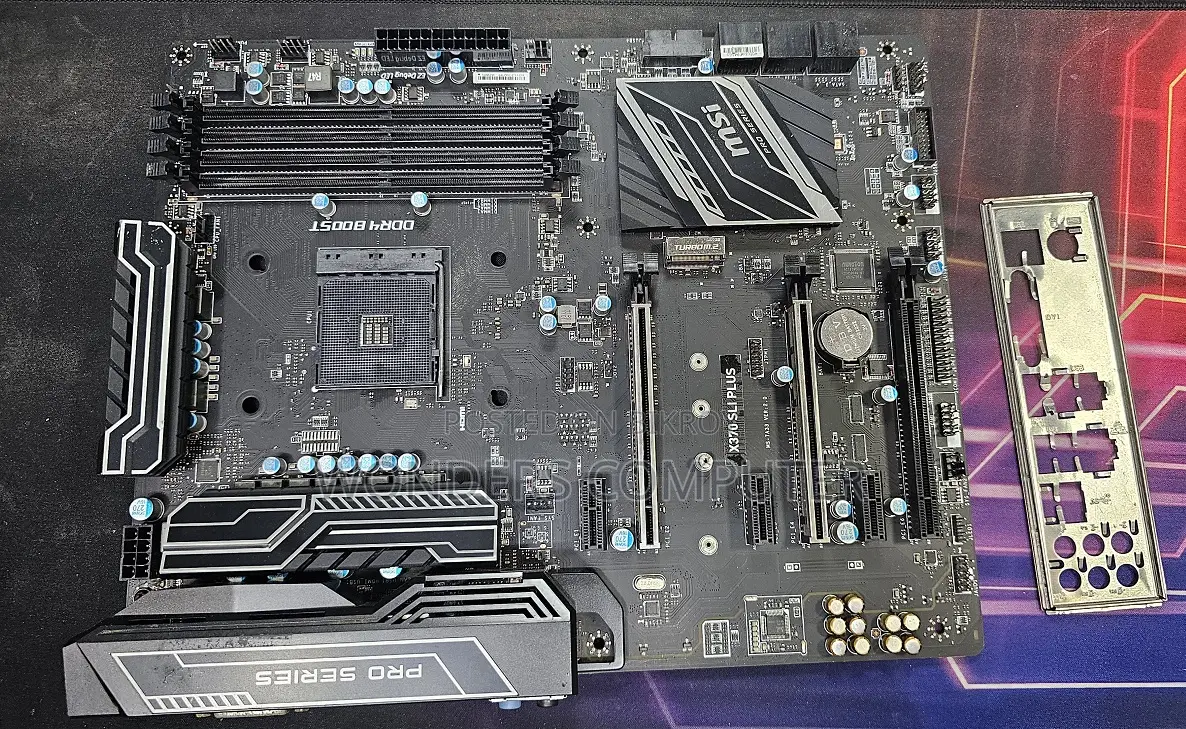

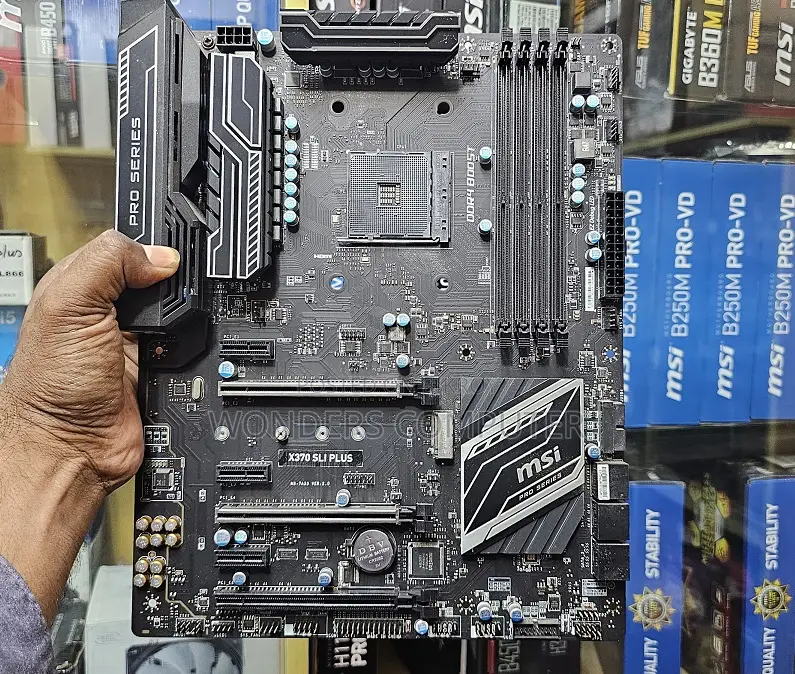

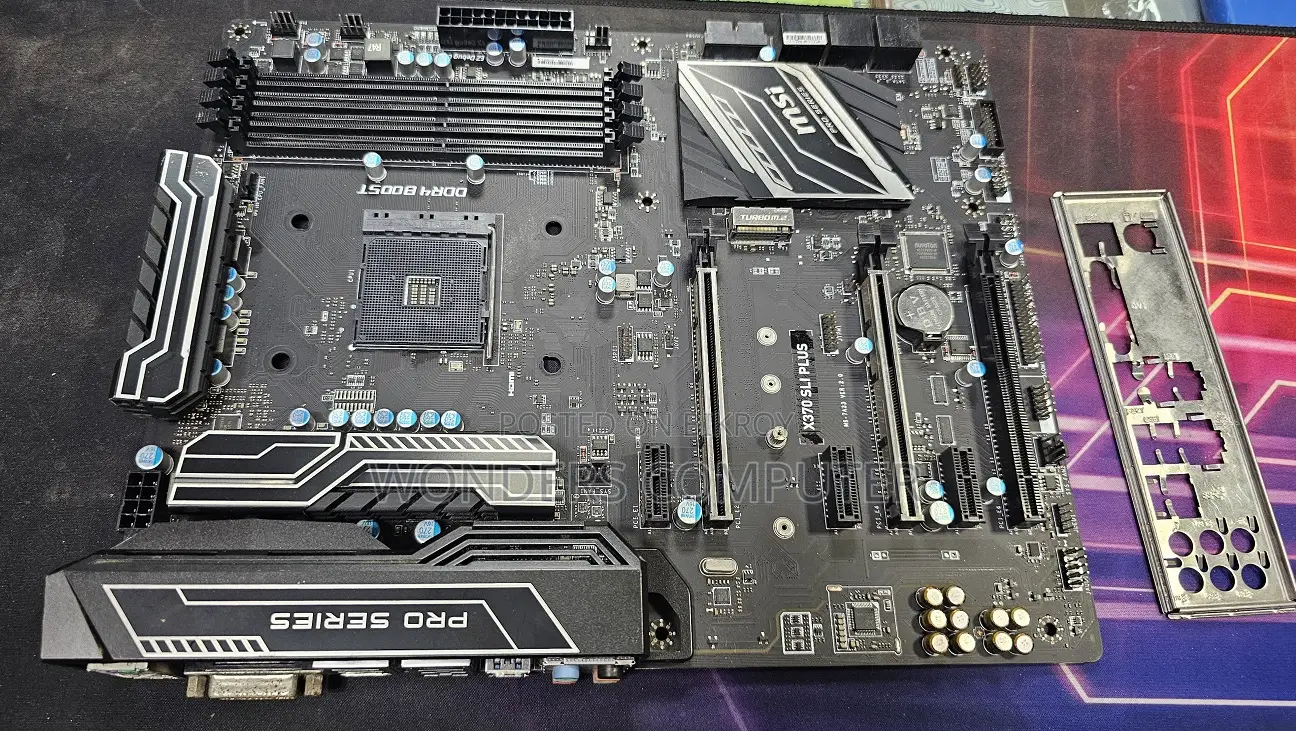

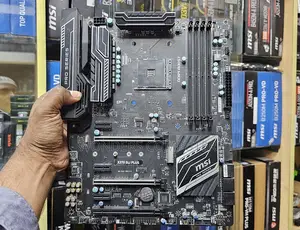

MSI PRO X370 SLI PLUS AM4 AMD USB 3.1 HDMI ATX Motherboard

MSI PRO X370 SLI PLUS AM4 AMD X370 USB 3.1 HDMI ATX AMD Motherboard Learn more about the MSI X370 SLI PLUS Inaccurate specs? Let us know Feedback Model Brand MSI Series PRO Model X370 SLI PLUS Supported CPU CPU Socket Type AM4 CPU Type Supports AMD Ryzen 1st and 2nd Generation / Ryzen with Radeon Vega Graphics / Athlon with Radeon Vega Graphics and A-series / Athlon X4 Processors for Socket AM4 Chipsets Chipset AMD X370 Memory Number of Memory Slots 4x288pin (DDR4) Memory Standard DDR4 3200(OC)+/ 2933(OC)/ 2667(OC)/ 2400/ 2133/ 1866 * * A-series / Athlon X4 processors support up to 2400 MHz only. Please refer www.msi.com for more information on compatible memory. Maximum Memory Supported 64GB Channel Supported Dual Channel Expansion Slots PCI Express 3.0 x16 2 x PCIe 3.0 x16 slots (PCIE_2, PCIE_4) RYZEN series processors support x16/x0, x8/x8 mode Ryzen with Radeon Vega Graphics and A-series / Athlon X4 processors support x8/x0 mode AMD Athlon with Radeon Vega Graphics processors support x4/x0 mode PCI Express 2.0 x16 1 x PCIe 2.0 x16 slot (PCIE_6, supports x4 mode)* * PCI_E6 slot will be PCIe 2.0 x1 when installing device in any PCIe x1 slot. PCI Express x1 3 x PCIe 2.0 x1 slots Storage Devices Serial ATA (SATA) 6 x SATA 6Gb/s M.2 1 x M.2 slot (Key M) Supports PCIe 3.0 x4 (RYZEN series processor) or PCIe 3.0 x2 (AMD Athlon with Radeon Vega Graphics and A-series / Athlon X4 Processors) and SATA 6Gb/s 2242/2260/2280/22110 storage devices SATA RAID 0/1/10 Onboard Video Onboard Video Chipset Supported only by CPU with integrated graphic: 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60Hz, 1600x1200@60Hz [1,3] 1 x HDMI 1.4 port, supports a maximum resolution of 2560x1600@60Hz [1,2,3] *1. Only support when using AMD Ryzen with Radeon Vega Graphics / Athlon with Radeon Vega Graphics and A-series Processors *2. Due to CPU spec limitation, when using AMD Athlon with Radeon Vega Graphics Processors, it could only support HDMI display output *3. Maximum shared memory of 2048MB Onboard Audio Audio Chipset Realtek ALC892 Audio Channels 7.1 Channels Onboard LAN LAN Chipset Realtek 8111H Max LAN Speed 1Gbps Rear Panel Ports PS/2 1 x PS/2 keyboard/mouse port Video Ports 1 x DVI-D port HDMI 1 x HDMI 1.4 port RJ45 1 x RJ45 USB 3.1 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A 4 x USB 3.1 Gen1 (SuperSpeed USB) Type-A USB 1.1/2.0 2 x USB 2.0 USB Type-C 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C Audio Ports 6 Ports Internal I/O Connectors Onboard USB 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports) 2 x USB 3.1 Gen1 connectors (support additional 4 USB 3.1 Gen1 ports) Other Connectors 1 x 4-pin CPU fan connector 1 x 4-pin PUMP fan connector (supports up to 2A) 4 x 4-pin system fan connectors 1 x RGB LED connector 1 x TPM module connector 1 x Serial port connector 1 x Parallel port connector 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x Clear CMOS jumper Physical Spec Form Factor ATX LED Lighting RGB Dimensions (W x L) 12.0" x 9.6" Power Pin 1 x 24-pin ATX 12V power connector 1 x 8-pin ATX 12V power connector
