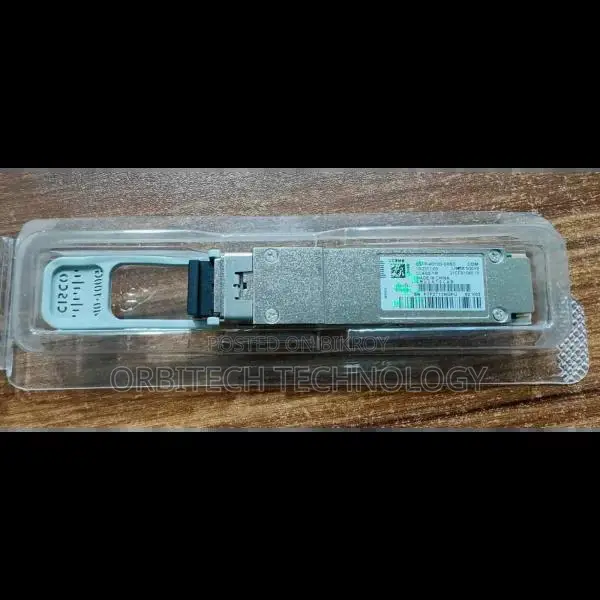

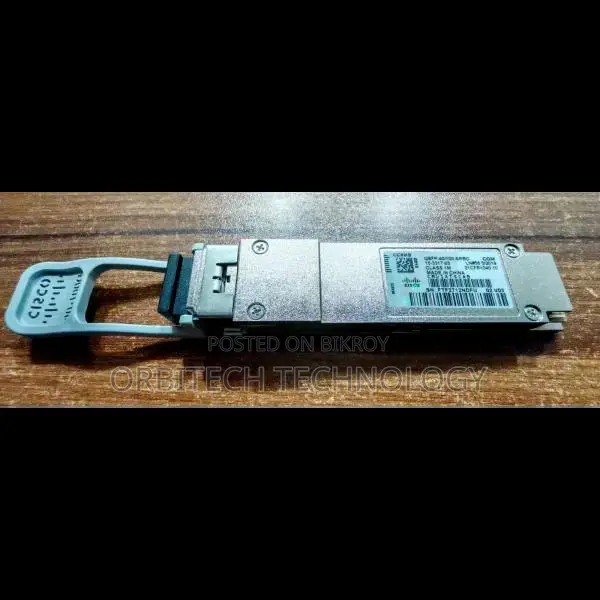

Cisco QSFP-40/100-SRBD 40/100G BASE-Optical Transceiver Module

+1

SFP Modules

Type

Cisco

Brand

Brand New

Condition

Cisco Compatible: QSFP-40/100-SRBD Form Factor: QSFP28 Max. Data Rate: Dual Rate 40 Gbps and 100 Gbps Wavelength: 850/880/910/940nm Max. Connector: Duplex LC Media: MMF Transmitter Type: VCSEL Receiver Type: PIN TX Power 100G: -7.5~2 dBm 40G: -7.5~3 dBm Minimum Receiver Power 100G: L0: -9.5dBm, L1: -9.4dBm, L2: -9.4dBm, L3: -9.4dBm 40G: L0: -12.9dBm, L1: -12.5dBm, L2: -12.2dBm, L3: -11.9dBm Power Budget 100G: 1.9dB 40G: 2dB Receiver Overload 100G: 3.4 dBm 40G: 2.4 dBm Power Consumption 40G ≤3.5W Extinction Ratio: ＞2 dB DDM/DOM: Supported Commercial Temperature Range: 0 to 70°C (32 to 158°F) Modulation (Electrical): 4x 25G NRZ Modulation (Optical): 4x 25G NRZ Protocols SWDM MSA, QSFP28 MSA, IEEE802.3bm CAUI-4 This Cisco QSFP-40/100-SRBD is basically a hot-swappable transceiver module that is specially designed for use in Cisco networ ...
