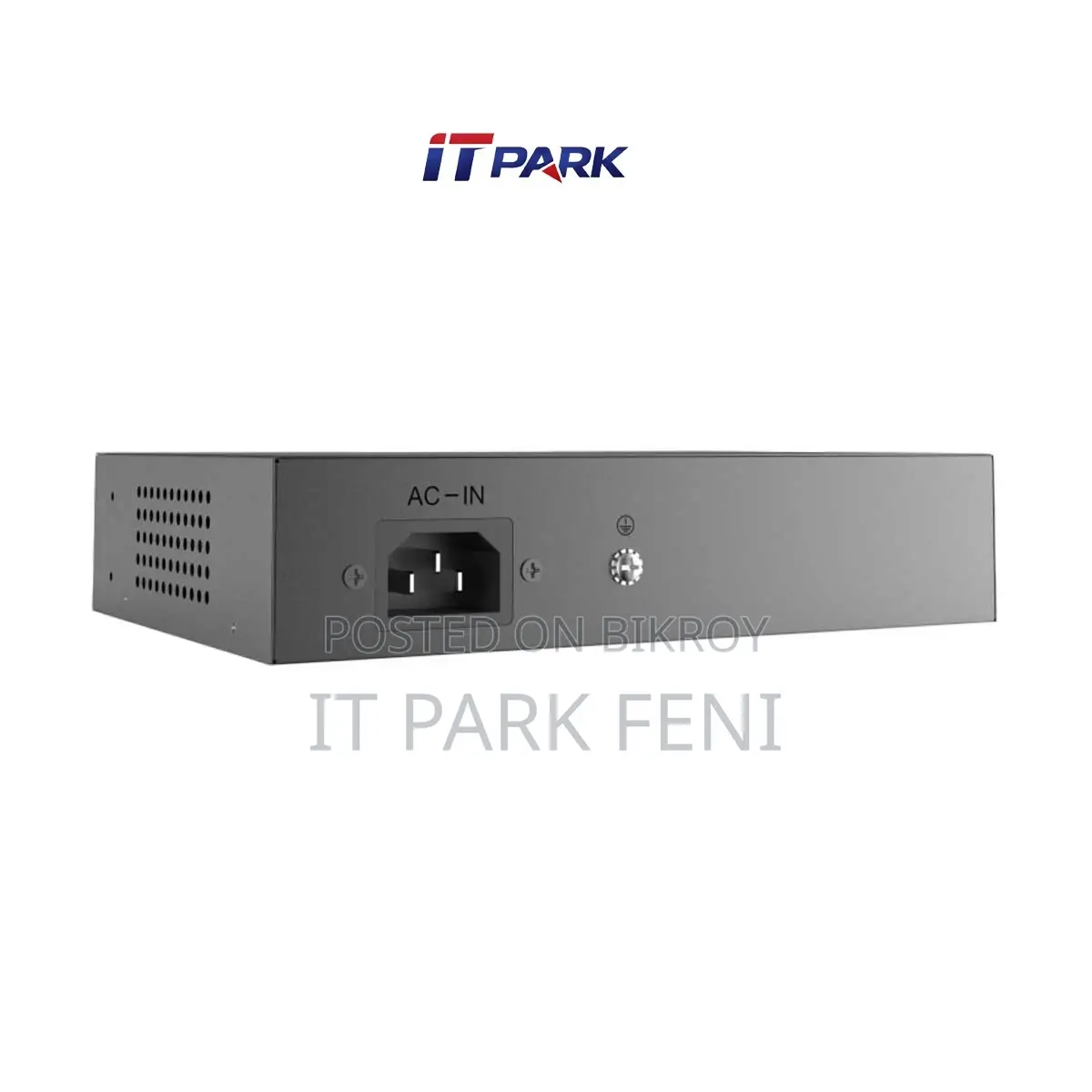

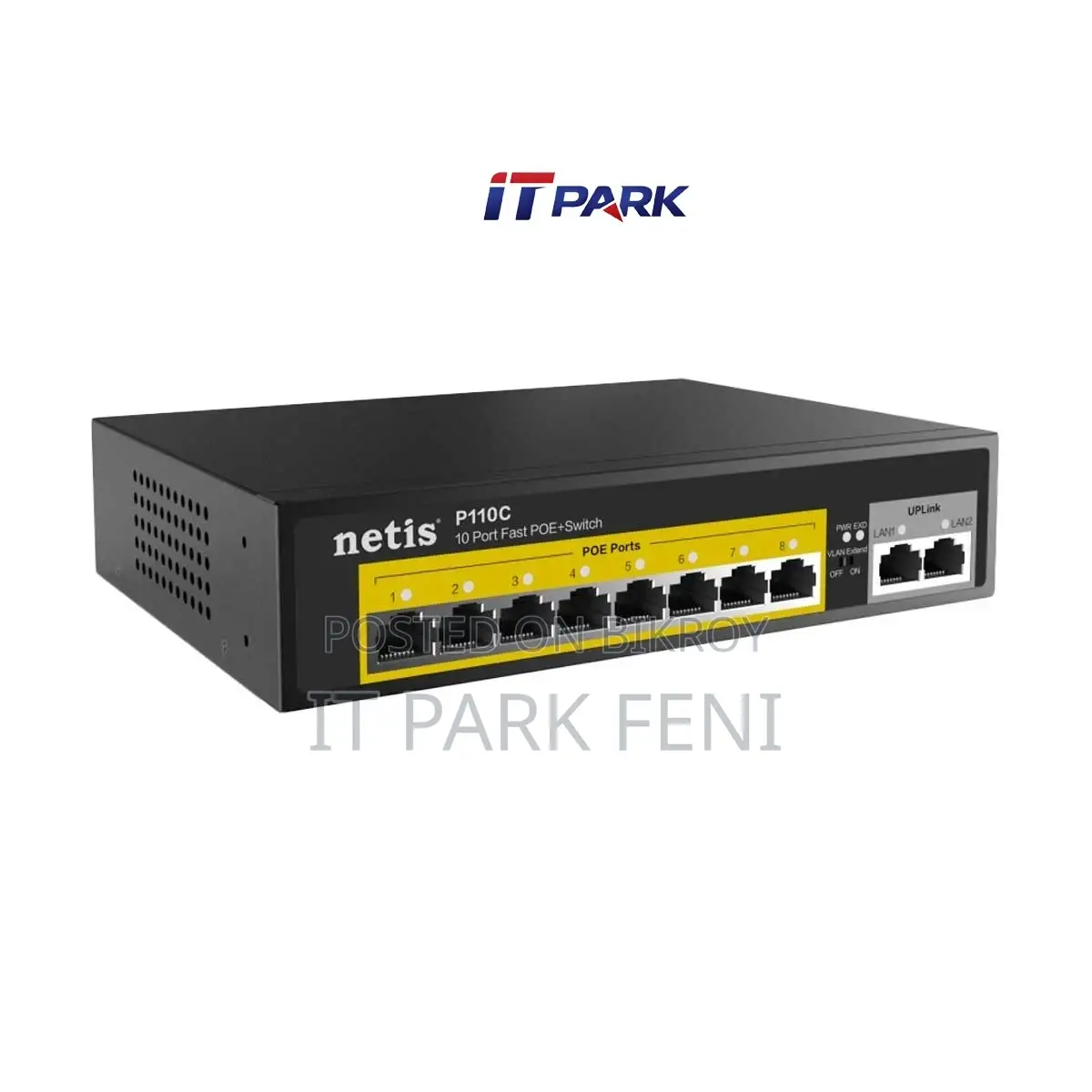

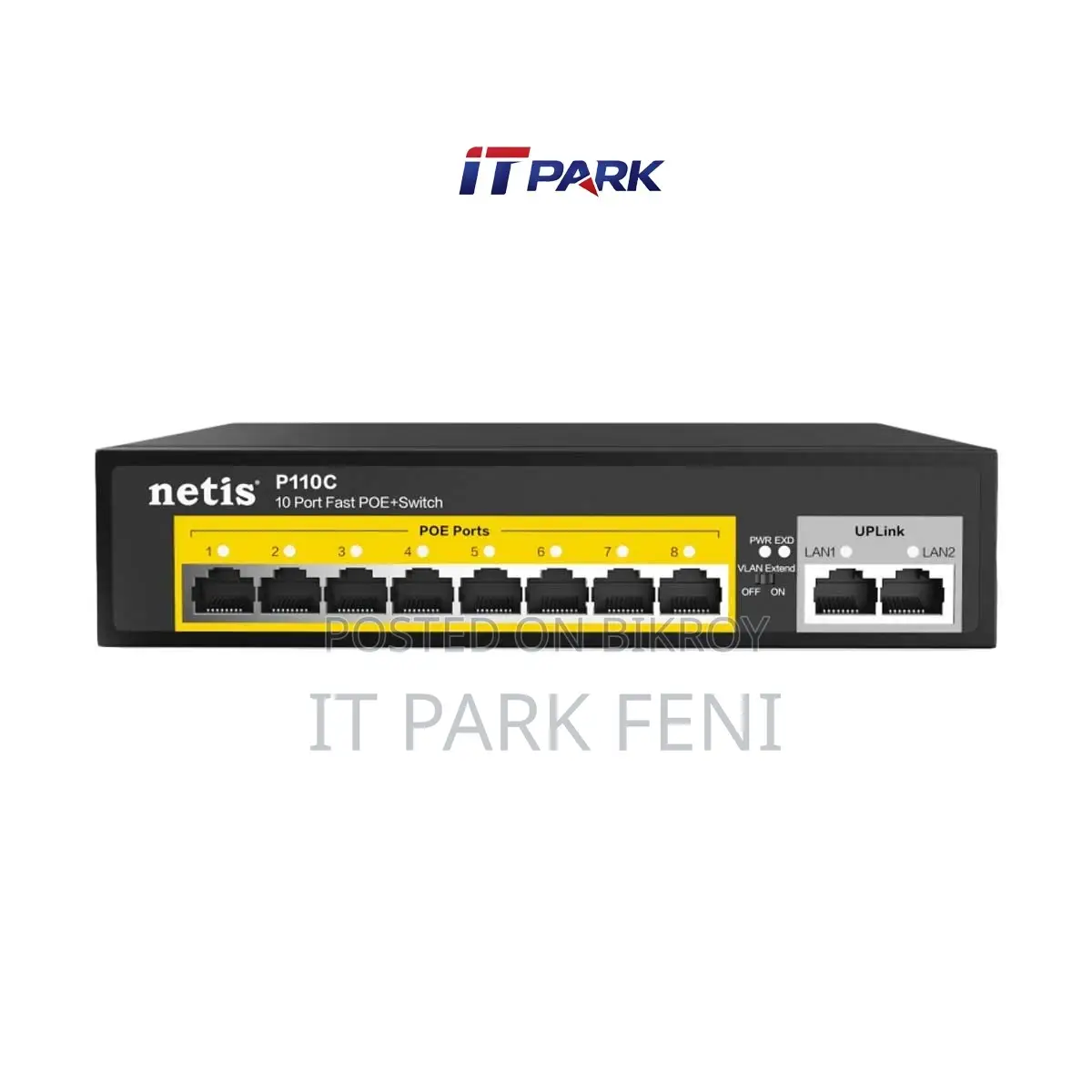

Netis P110C 8POE+2RJ45 100M Standard POE Switch
Netis
Brand
Brand New
Condition
Netis P110C 8POE+2RJ45 100M Standard POE Switch
Hardware
Interface: 8*10/100Mbps POE ports (Data/Power)
2*10/100M uplink RJ45 ports (Data)
Basic function:
Follows IEEE 802.3 Ethernet and IEEE802.3u Fast Ethernet Protocol
Supports POE IEEE 802.3af/at compliant Powered Device (PD)
Store-and-forward switching scheme
Supports IEEE802.3X full duplex and Backpressure half duplex
MAC address auto-learning & auto-aging
Standards:
IEEE 802.3 10BASE-T Ethernet
IEEE 802.3i 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3af/at, Power over Ethernet
IEEE 802.3x Flow Control
Mode:
Normal switch mode/Extend mode
Data Transfer Rate:
Ethernet: 10Mbps (Half-duplex); 20Mbps (Full-duplex)
Fast Ethernet: 100Mbps (Half-duplex); 200Mbps (Full-duplex)
Store & Forwarding: Yes
Switching Capacity: 2G
MAC Address Table Size: 2K
Jumbo Frame: 2048 byte
Environment:
Operation Temperature: 0℃～40℃
Storage Temperature: -40℃～70℃
Operation Humidity: 10%～90% RH Non-condensing
Storage Humidity: 5%～90% RH Non-condensing
Power Input POE Standards:
Single port maximum power 30W, Whole switch maximum power 120W
Supports over-current, over-voltage, and short-circuit protection
Supports Soft Start of High Power PD
Supports sequential boot-up
Power Supply Pin: 12+/36-
AC 110~240V 50/60HZ
Cabling type:
100Base-TX: Cat 5e or better UTP/STP (≤100m)
10Base-TX: Cat 5e or better UTP/STP (≤250m)
Dimensions (L x W x H): 190mm*140mm*43mm
