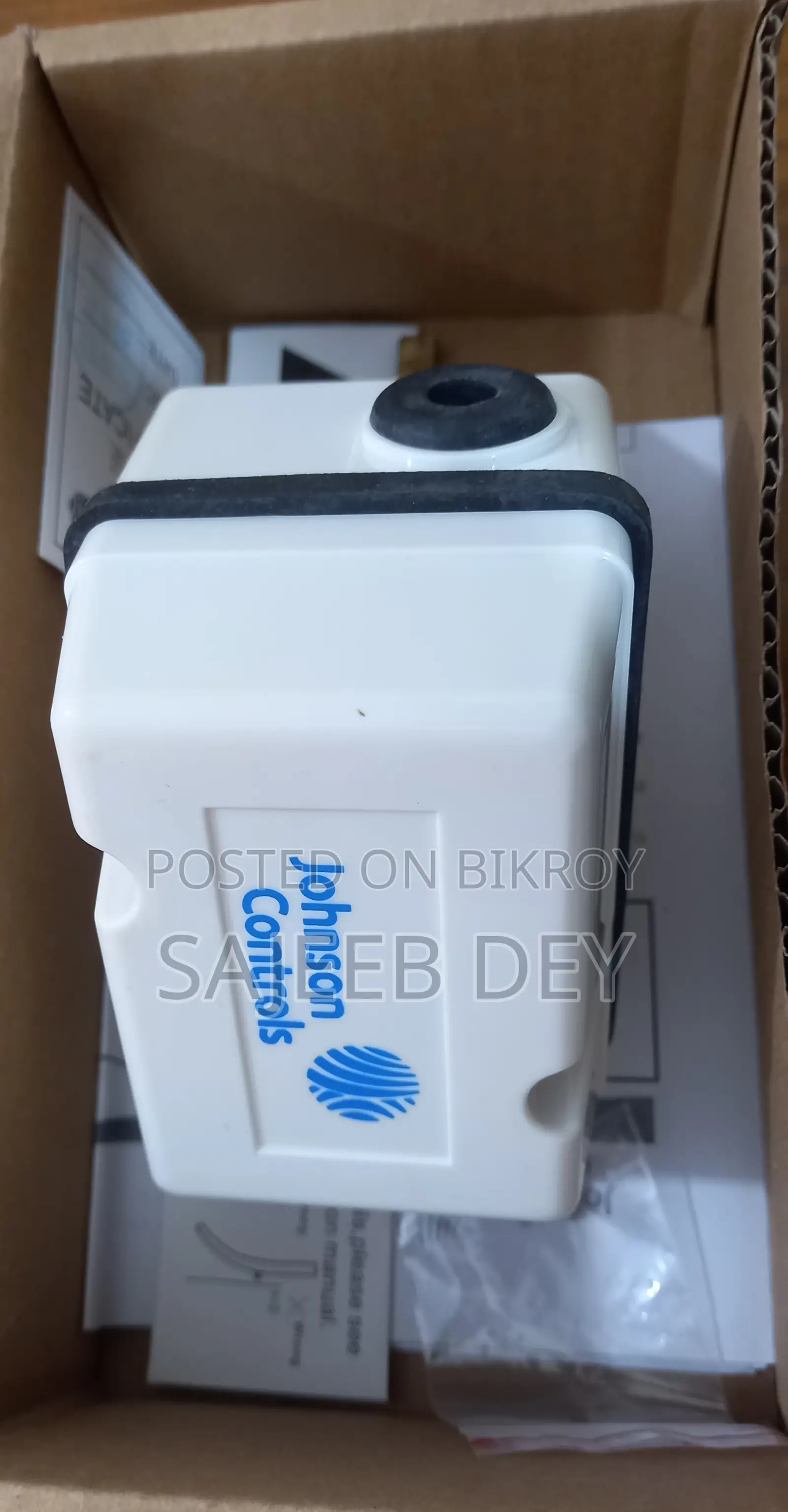

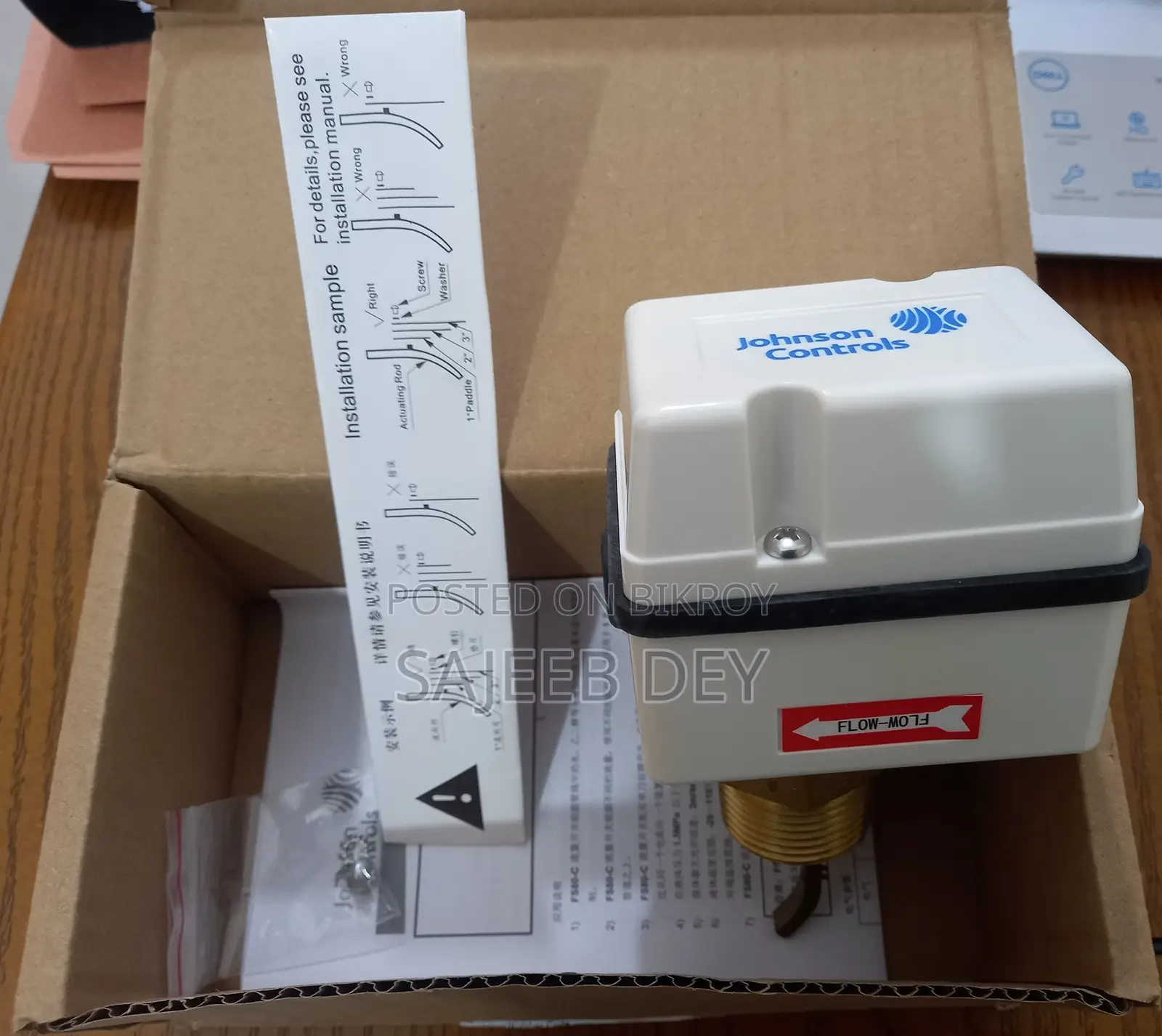

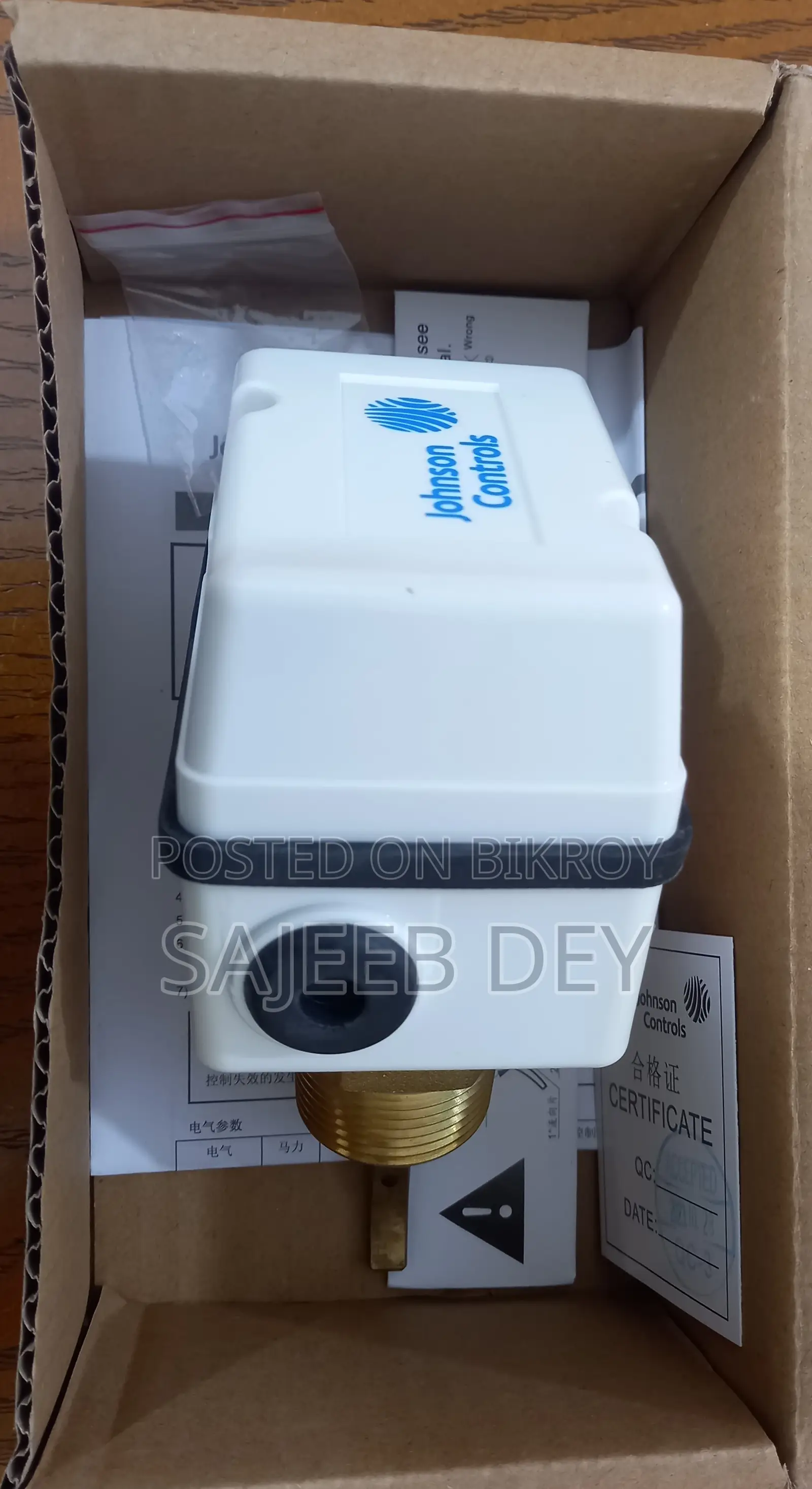

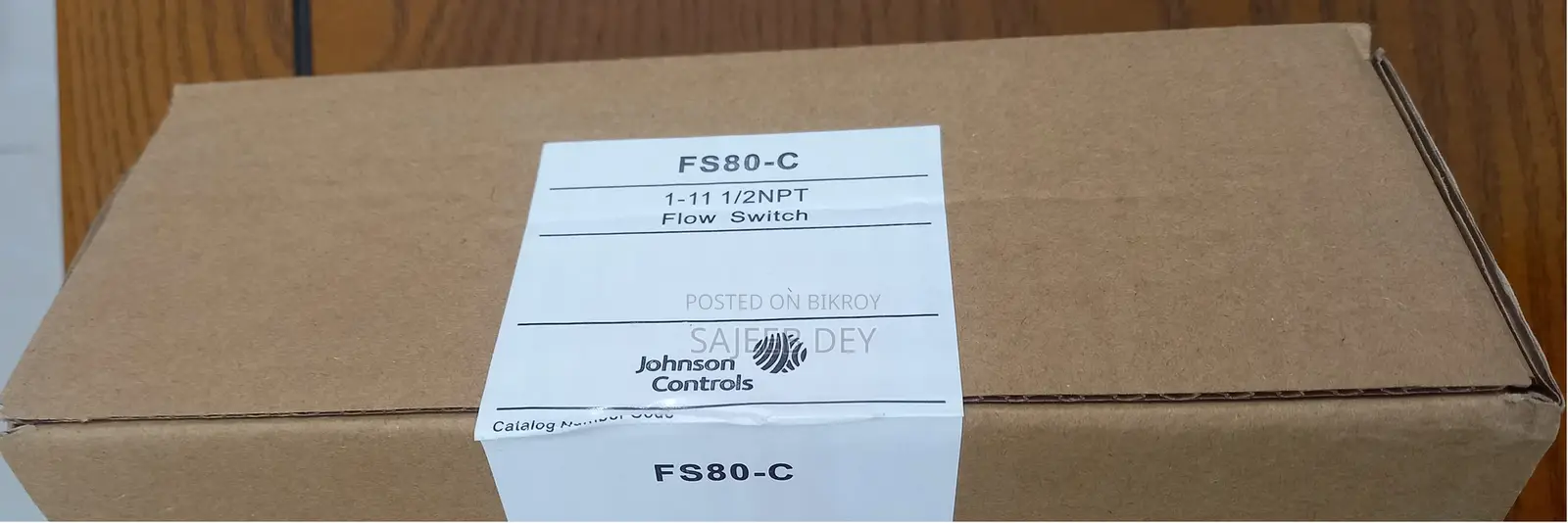

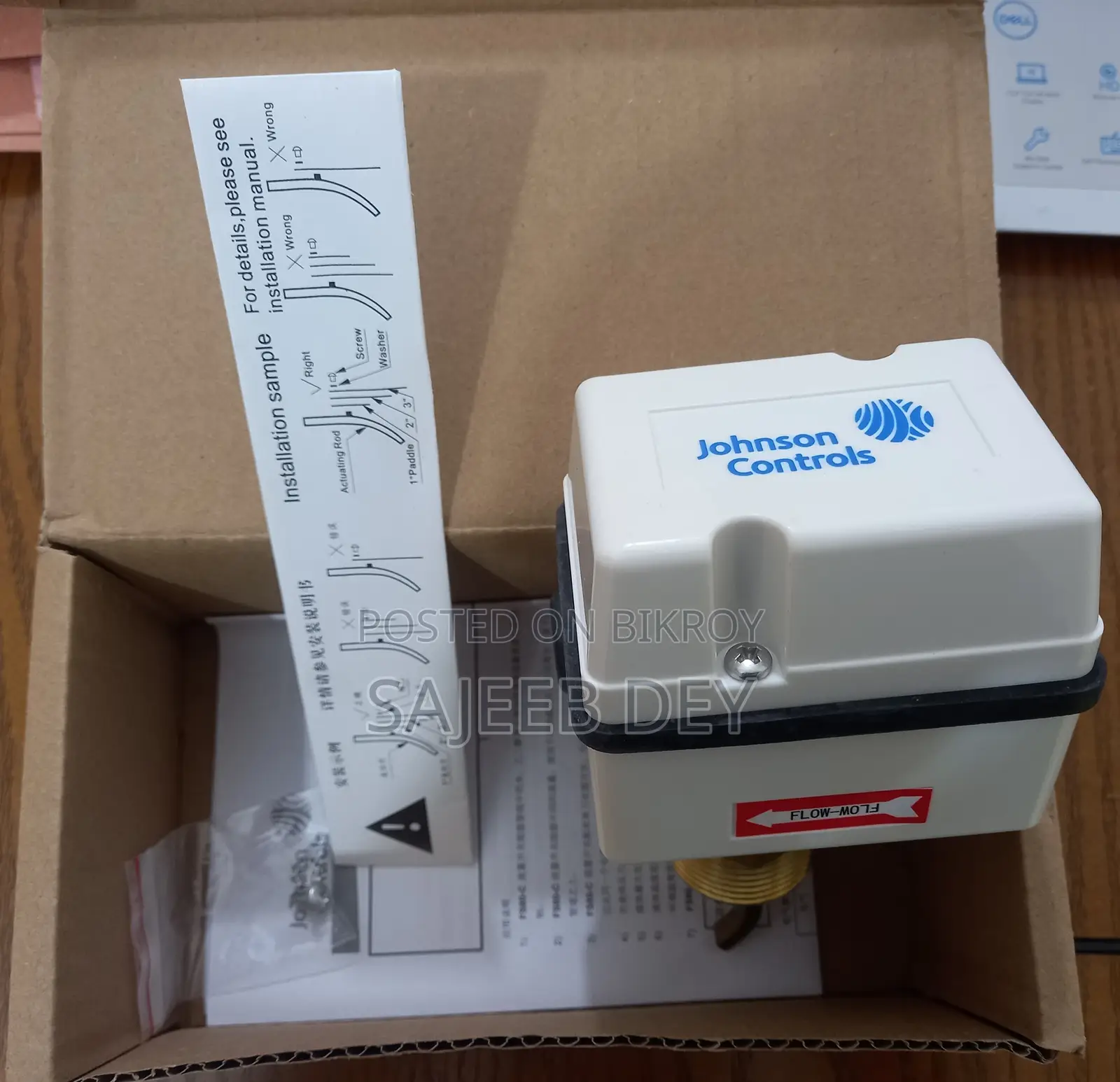

Johnson Controls FS80-C water flow switch
Brand New
Condition
Description:
1) FS80-C Flow Switch responds to fluid flow in lines carrying water, ethylene glycol, or other non-hazardous fluids.
2) FS80-C Flow Switch uses a variety of paddle sizes to respond to fluid flow rates in applications with pipe sizes greater than 1-inch trade size.
3) Single-Pole, Double-Throw (SPDT) flow switch that can be wired to energize one device and de-energize another device powered from the same source when liquid flow either exceeds or drops below the set flow rates.
Technical Specification:
Product: FS80-C
Maximum Fluid Pressure: 1.5MPa
Fluid Temperature Minimum: -25℃, Maximum: 110℃
Ambient Temperature Minimum: -20℃, Maximum: 60℃
Electrical Rating: 110VAC/ 220 VAC
Horsepower: (HP) 1/ 1
Full Load Amperes (A): 16/ 8
Locked Rotor Amperes (A): 96/ 48
Non-inductive Amperes (A): 16/ 16
Pilot Duty: 125VA at 24～277VAC
Wiring Connection: Screw Type Terminals
Paddles: 1 in., 2 in., 3 in., 6 in. Paddles are supplied with FS80-C
Material: SS301
Switch: SPDT
Pipe Connection: 1” 11-1/2NPT Threads
Agency listings: CE
Shipping Weight, lb (kg): 1.26lb (0.57kg)
Made in China.
