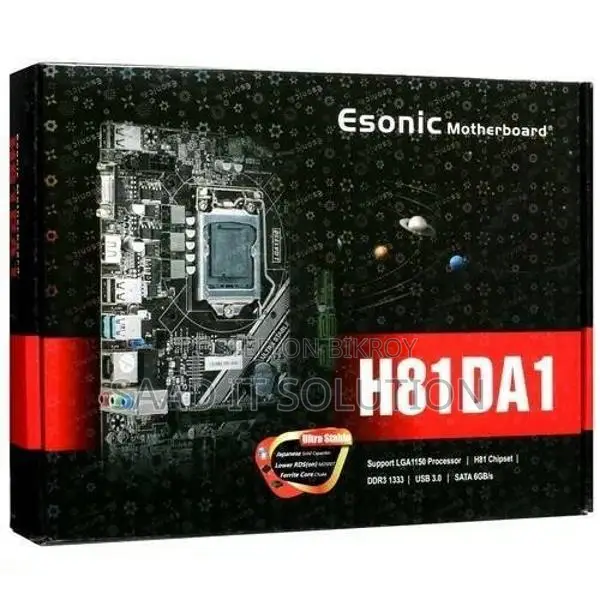

Esonic H81DA1 4th Gen M-ATX Motherboard
Slot 1 x PCIe x16 3.0/2.0 slot
1 x PCIe x1 2.0 slot
Storage 1 x M.2 Nvne Socket, Supports 2242 SSD
4 x SATA 6Gb/s Ports
USB 4 x USB 3.0 port (2 at back panel, blue, 2 at mid-board)
6 x USB 2.0 port (4 at back panel, black, 2 at mid-board)
Back Panel I/O 1 x VGA Port
1 x HD Port
1 x LAN (RJ45) Port
2 x USB 3.0 Ports(Blue)
4 x USB 2.0 Ports
3 x flexible audio jacks
Internal I/O 1 x USB 3.0 connector (19pin) supports 2 x USB 3.0 ports
1 x USB 2.0 connector, supports 2 x USB 2.0 ports
4 x SATA 6Gb/s Ports
1 x 4-pin CPU FAN/SYS FAN connectors
1 x 24-pin ATX power connector
1 x 4-pin 12V ATX Power connectors
1 x DEBUG connector
1 x F Audio connector
1 x Internal Speaker connector
1 x F Panel connector
Dimension: 215 x 170mm
Color: Black
Esonic H81DA1 M-ATX motherboard supports Core i7 / i5 / i3 processors. It includes Intel's H81 chipset w ...
