Mud viscometer Water value 15 ± 0.5S
Tube outlet hole 5mm diameter, 100mm length
Mezzanine measuring cup 500ml at one end and 200ml at the other
Mud hydrometer The unit is g/mm3
15 ± 0.5s water value
140cm3 mud cup capacity
0.96~3g/cm3 measurement range
0.01g/cm3 accuracy measurement
500(L) x 100(W) x 100(H)mm instrument size
Sludge sediment measuring device 200mesh filter screen
Sand content scale 0~15 percent per cell 0.5 percent, 15~ 30 percent per cell 1 percent

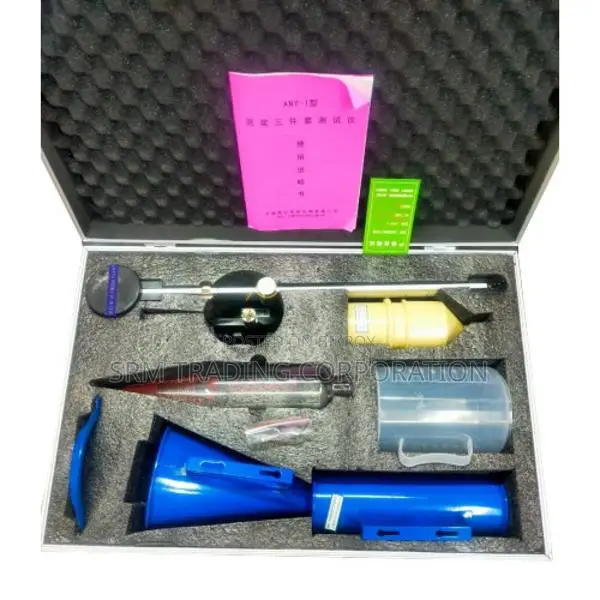

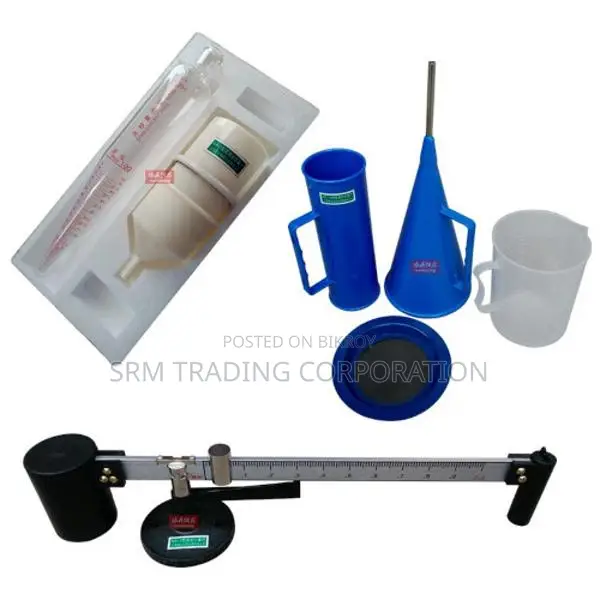

Package includes
1 x sand content tester
1 x grout gravimeter
1 x grout viscometer
The 3-in-1 test kit is a sand content test, grout gravimeter and the slurry viscometer can be operated. Ideal for measuring mud sand content in any well or laboratory you use this device. It is determined by the volume of the slurry after filtration through the screen and is expressed in te ...
