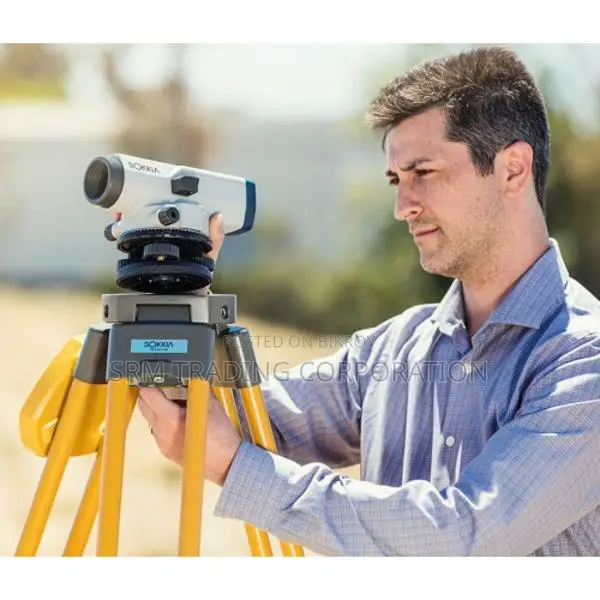

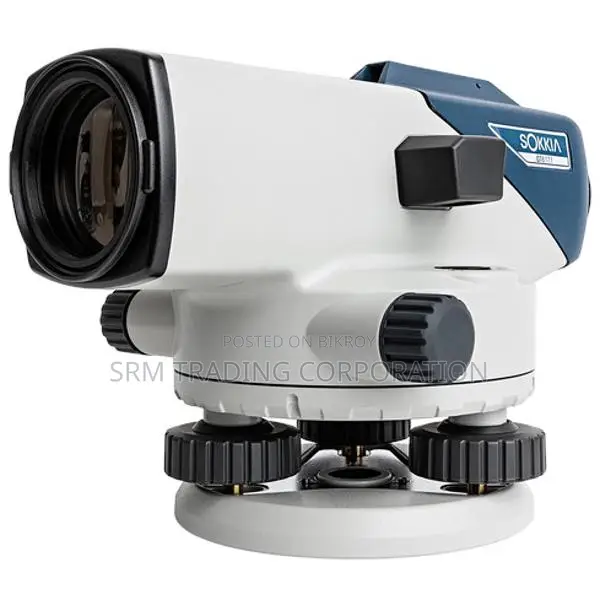

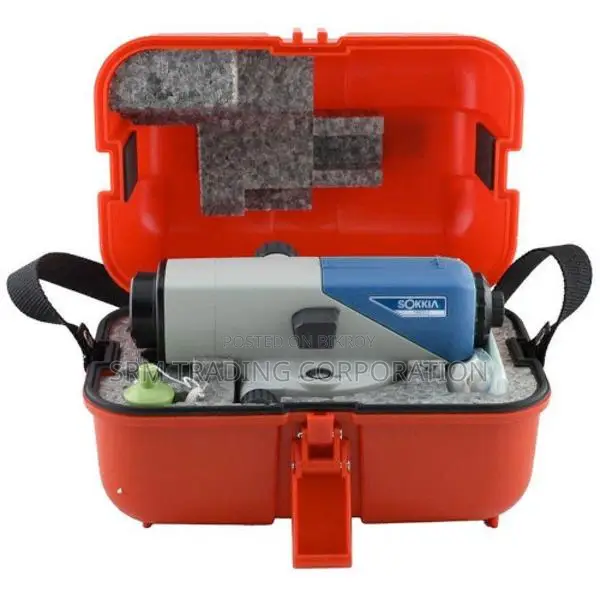

Sokkia B20 Automatic Level Machine
Brand New
Condition
Sokkia
Brand
Auto Level
Type
Store address
1
Dhaka • Motijheel
Swantex Bhaban 2nd Floor,Southside 9/I,Motijhill
Closed now
• Mon, Tue, Wed, Thu, Sat, Sun, 09:00-18:00
Precise, field-proven compensator: Yes
Horizontal angle measurement: Yes
Superior telescope with a two-speed focus knob
Quick collimation with two horizontal motion knob
Telescope Length: 215mm
Magnification: 32X
Objective Aperture: 42mm
Field of View: 7.5 feet
Minimum Focus 0.2m from the end of a telescope
0.3m from the instrument center
Image Reticle pattern: Wedge line
Stadia Ratio: 100
Focusing knob:2-speed
Sighting aid: Peep sight
Circular Level Sensitivity: 10' / 2mm
Mirror: Pentaprism
Graduations: 1◦/1gon
Accuracy Without Micrometer: 0.7mm
With Micrometer: 0.5mm
Compensator Type: Pendulum compensator with magnetic damping system
Setting Accuracy: 0.3"
Working Range: ±15'
Horizontal Motion Drive Clampless, endless, double-side knobs
Without Micrometer: 0.7 mm
Water Resistance: IPX6
Operating Temperature: -20 to +50◦C
Assemble C ...
