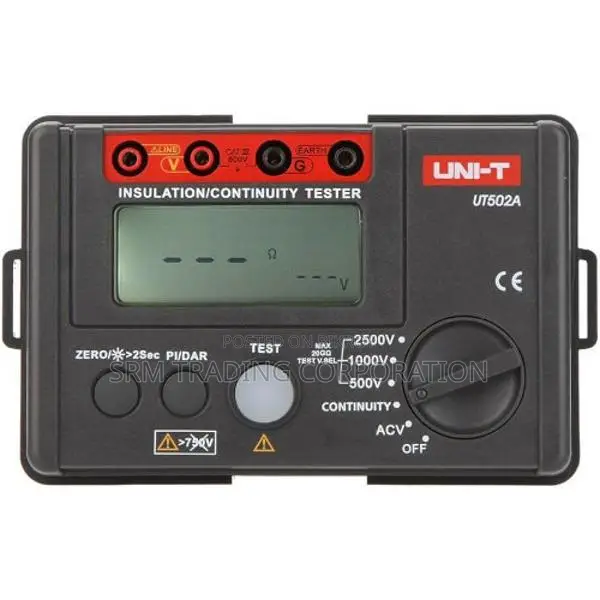

UNI-T UT502A Insulation / Continuity Tester

+1

Brand New

Condition

Uni-t

Brand

Other

Type

Store address

1

Dhaka • Motijheel

Swantex Bhaban 2nd Floor,Southside 9/I,Motijhill

Closed now

• Mon, Tue, Wed, Thu, Sat, Sun, 09:00-18:00

View on map

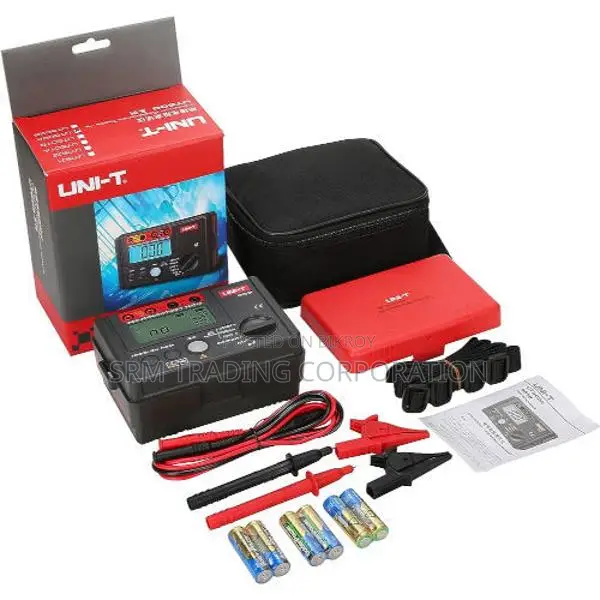

Testing Voltage: 500V / 1000V / 2500V ± 10% Insulation Resistance 500V: 0.00MΩ-99.9MΩ ±(3%+5) 100MΩ-5.0GΩ ±(5%+5) 1000V: 0.00MΩ-99.9MΩ ±(3%+5) 100MΩ-5.0GΩ ±(5%+5) 2500V: 0.00MΩ-99.9MΩ ±(3%+5) 100MΩ-9.9GΩ ±(5%+5) 10.0GΩ-20.0GΩ ±(10%+5) Load Current 500V(R=500kΩ) 1mA 0%-10%, 1000V(R=1MΩ) 1mA 0%-10%, 2500V(R=1MΩ) 1mA 0%-10% Measurement Polarization Index (DAR) Dielectric Absorption (PI) Short Circuit Current: 200mA) ±(2%+3) AC Voltage: 30V-600V ±(2%+3) Maximum Display: 2000 count Auto Range Low Battery Indication LCD Backlight Alarm Indication Alarm Buzzer High Voltage Indication Over Load Indication Auto Discharge Test Voltage Display 10MΩ Internal Resistance Test Power: 6x 1.5V battery LCD Size: 70.6 x 34 mm Size: 150 x 100 x 71mm Weight: 500g Certification: CE, UKCA Package Included 1 x UNI-T UT502A Insulation Tester 2 x Test Lead 2 ...
