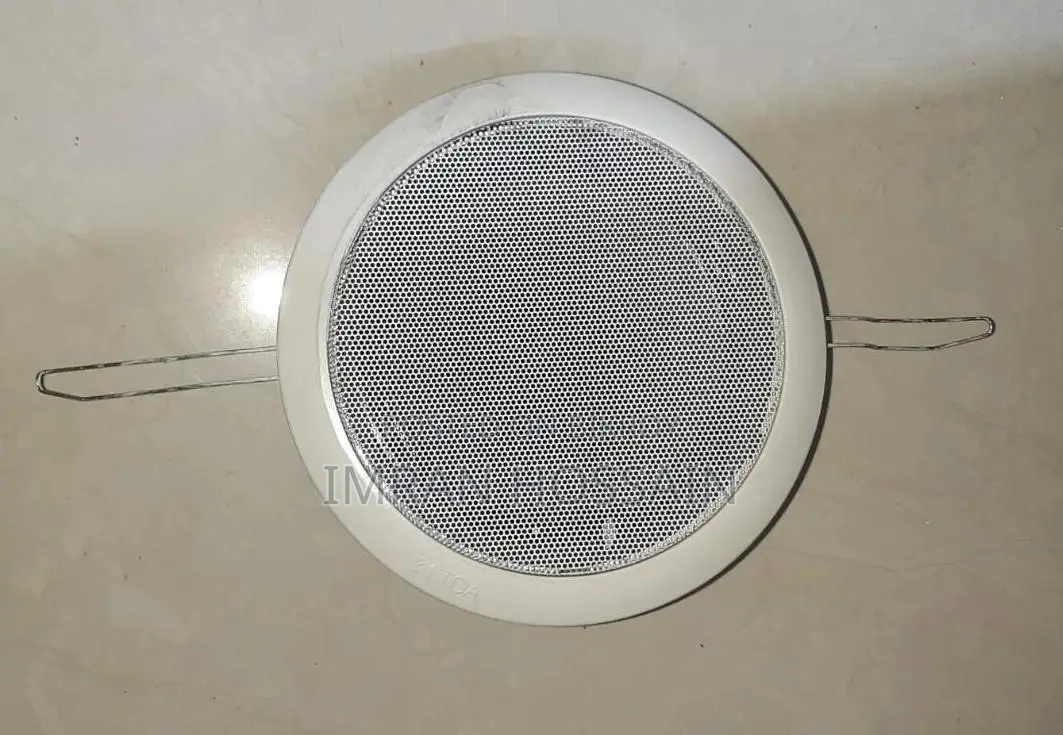

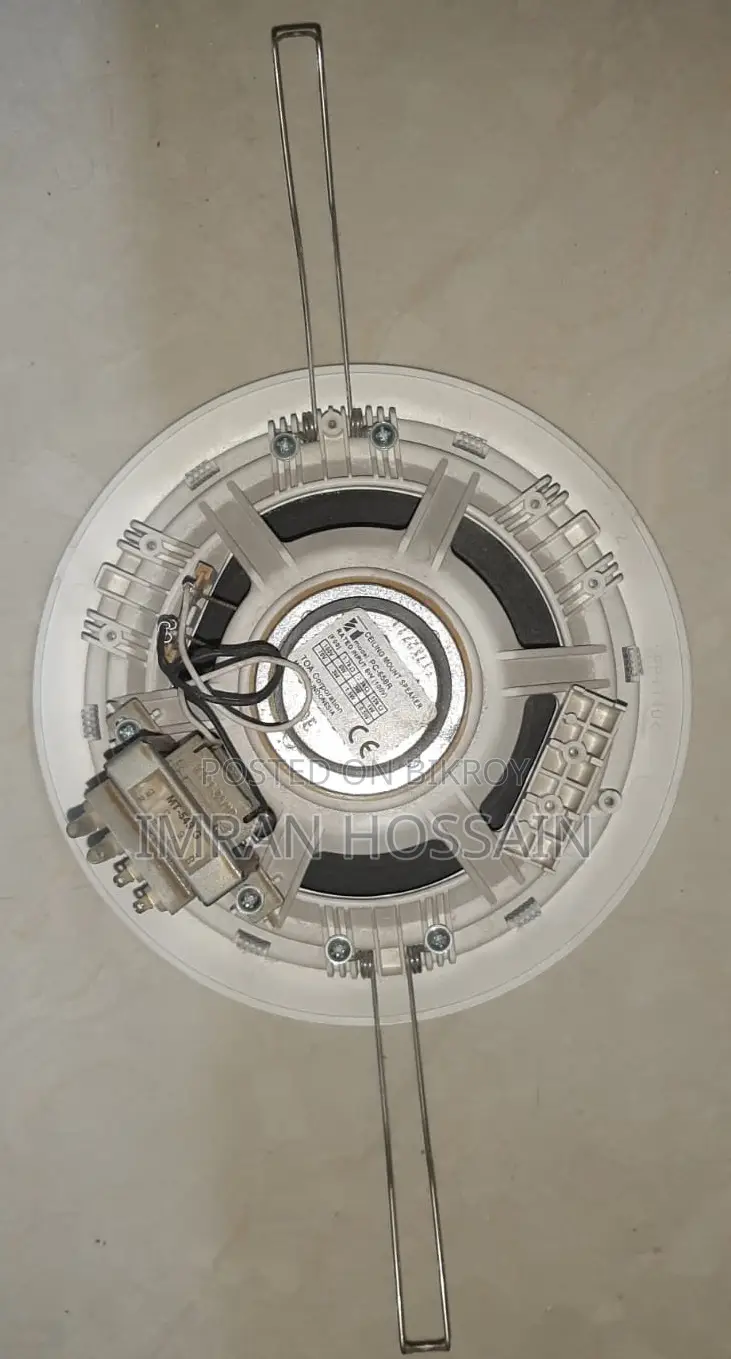

Toa Pc-658r 6watt Ceiling Speaker

+1

Speakers

Type

Used

Condition

TOA

Brand

2.0 Channel

Speaker Configuration

6watts

Speaker Output Power

Common Interface

Speaker Connectivity

No

Exchange Possible

Rated input 6 w (100 v line), 3 w (70 v line) rated impedance 100 v line: 1.7 kω (6 w), 3.3 kω (3 w), 10 kω (1 w) 70 v line: 1.7 kω (3 w), 3.3 kω (1.5 w), 10 kω (0.5 w) sensitivity 90 db (1 w, 1 m) (500 hz – 5 khz, pink noise) frequency response 65 hz – 18 khz (peak -20 db) speaker component 16 cm (6′′) cone-type dimensions for fixing hole mounting hole: φ170±5 mm (φ6.69′′±0.2′′) ceiling thickness: 5 – 25 mm (0.2′′ – 0.98′′) speaker mounting method spring clamp finish baffle: polypropylene resin, white (ral 9016 equivalent) grille: surface-treated steel plate net, white (ral 9016 equivalent), paint dimensions φ192 × 73 (d) mm (φ7.56′′ × 2.87′′) weight 500 g (1.1 lb)
